423TBCL-E — 42' Tridem Clamshell Belly Dump (Electronic Gate Stop)

Name: 423TBCL-E — 42' Tridem Clamshell Belly Dump (Electronic Gate Stop)
Brand: Cross Country Manufacturing

The 423TBCL-E Clamshell Belly Dump adds the Electronic Gate Stop system to our 42' 3-axle platform — infinite, in-cab control over gate opening for precision spreading.

Request a Quote →

Factory Sales: (888) 895-0833

Engineering & Design Overview

Built on the 420BCL 3-axle platform, the 423TBCL-E features the Electronic (infinite) Gate Stop: the operator sets gate opening to any position from the cab for repeatable, precise material placement. Clamshell gates open lengthwise for controlled windrow discharge of aggregate and asphalt.

Technical Specifications

Model Code	423TBCL-E
Overall Length	42'
Axle Configuration	3-Axle Tridem
Sidewall	Tapered
Frame	Fabricated high-tensile steel rails and crossmembers
Suspension	30,000 lb Hendrickson air-ride
Axles	25,000 lb with parallel axle ends, camshaft tubes
Gate Cylinders	8" composite with threaded clevis, external mount
Gate Stops	Electronic (infinite) control

Available Options & Custom Upfits

Electric tarp drive

Aluminum wheels

Lift axle

Axle guards (windrow deflectors) on 2nd and 3rd axles

Custom colours

Vibrator

UHMW liner

Front and rear shed plates

Commercial Orders

Configure This Model

Speak directly with our commercial sales engineering team or connect with an authorized dealership in your region.

Request a Quote Find a Local Dealer

Immediate assistance: (888) 895-0833

Authorized Dealer?

Factory Aftermarket & Warranty

Backed by Cross Country Manufacturing's multi-year structural warranty and factory genuine replacement parts network.

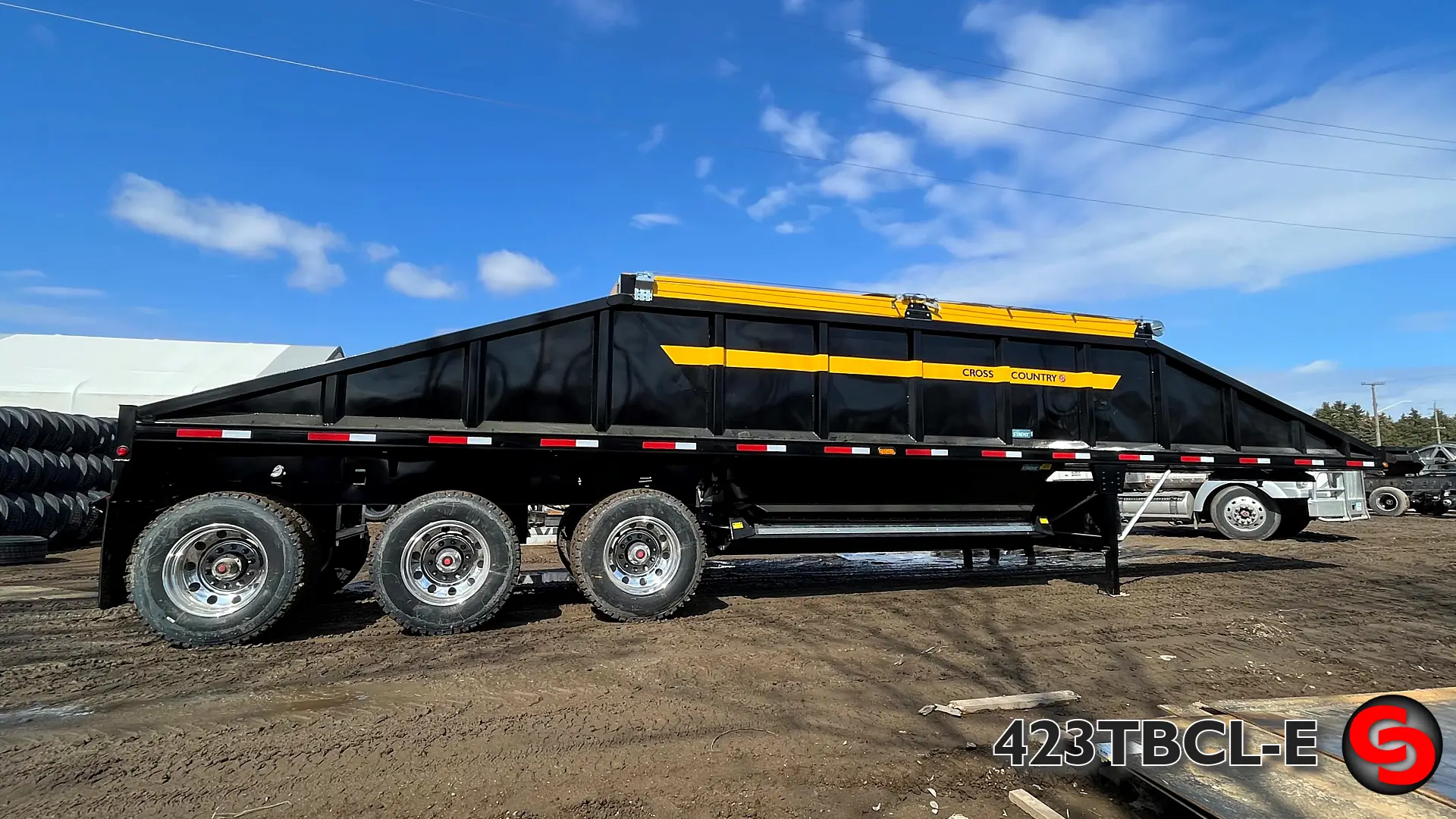

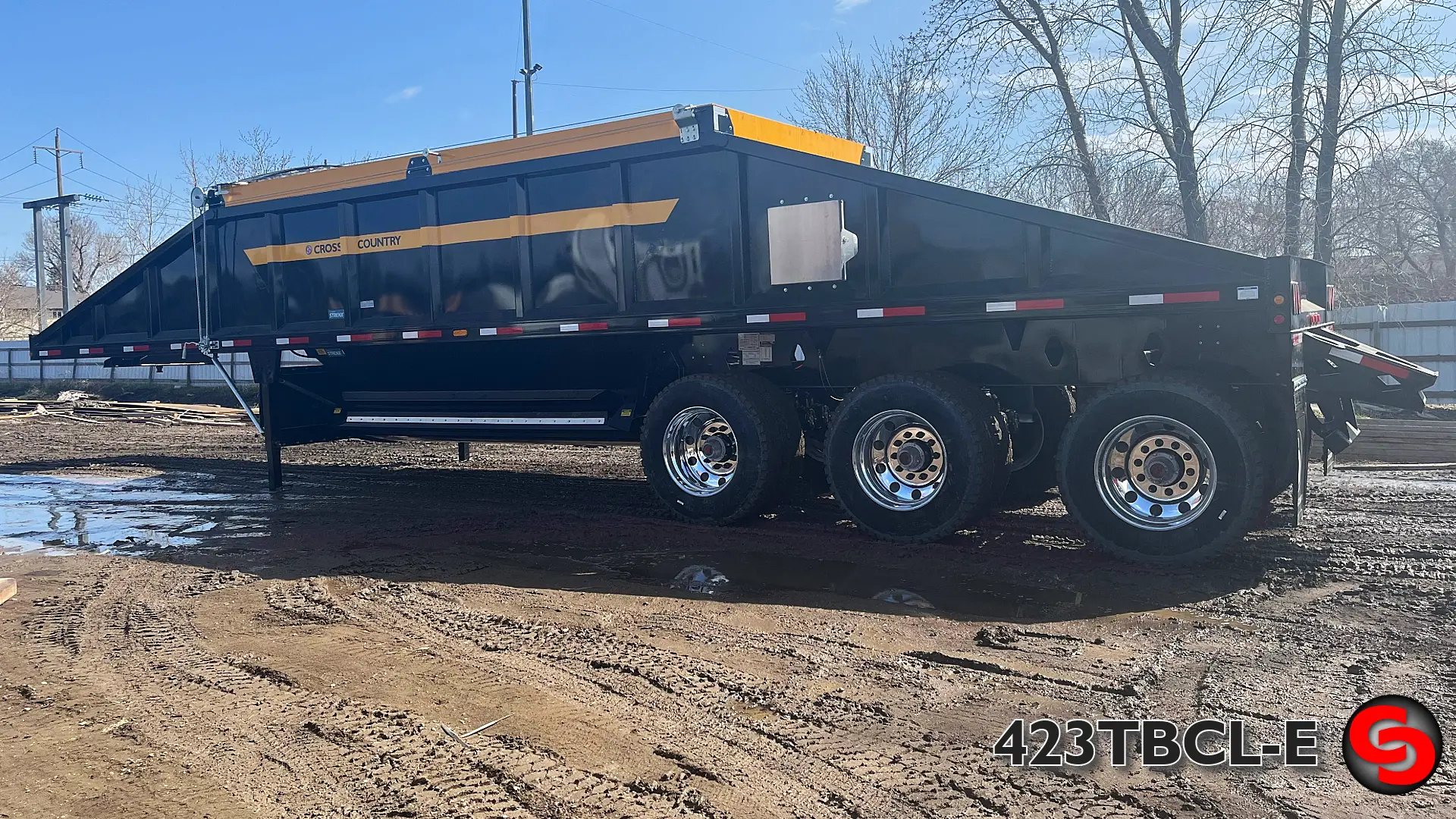

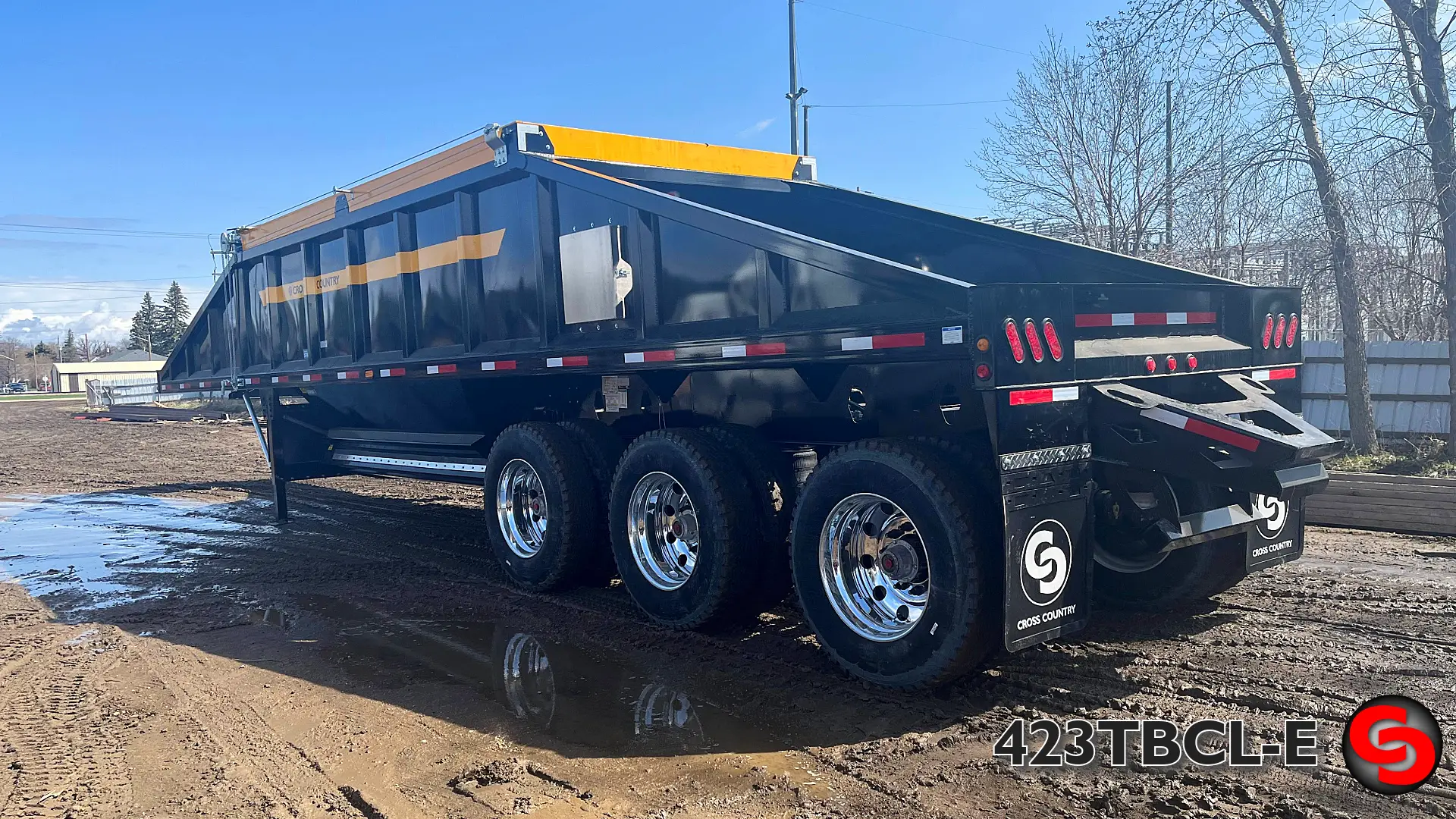

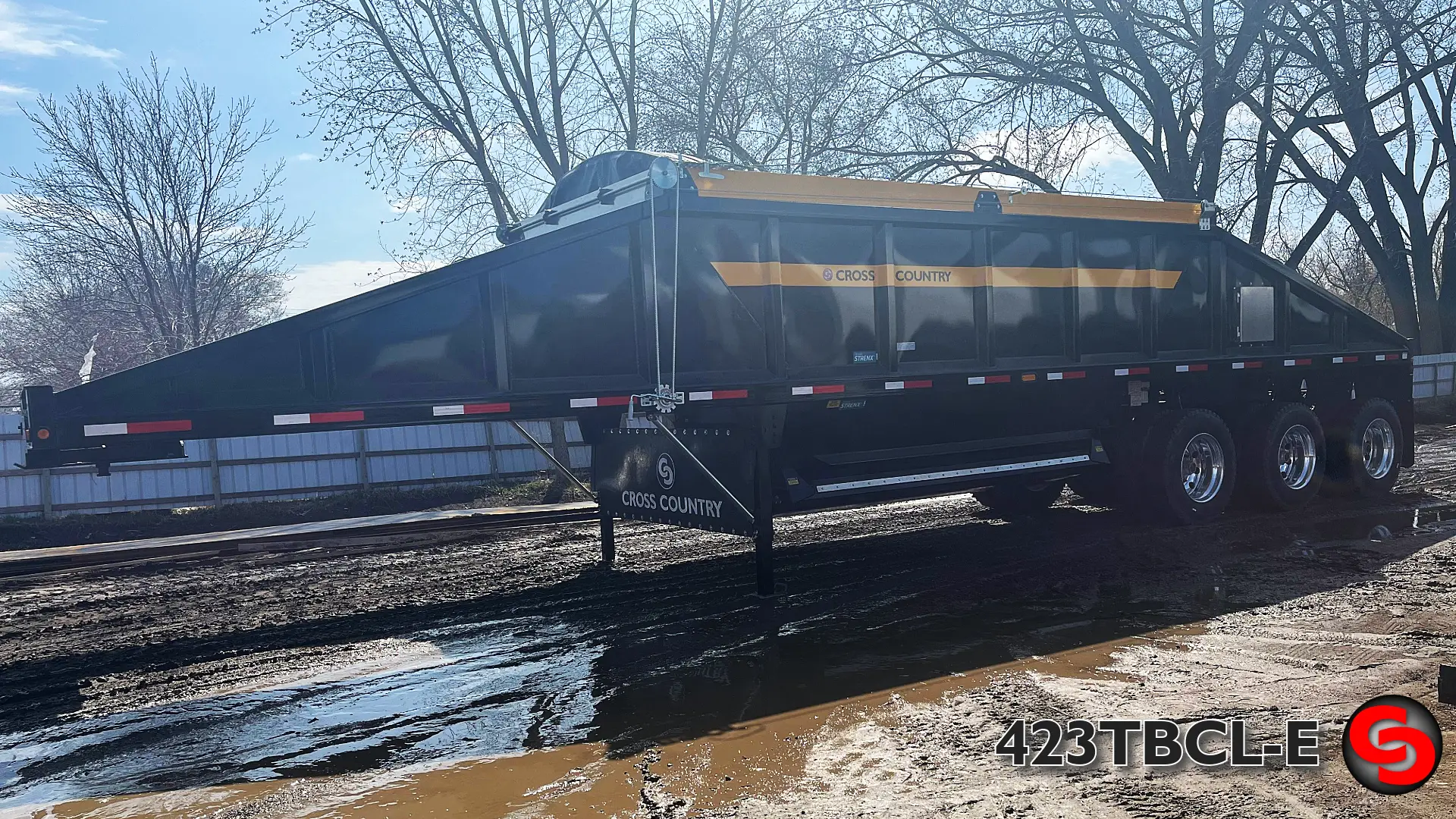

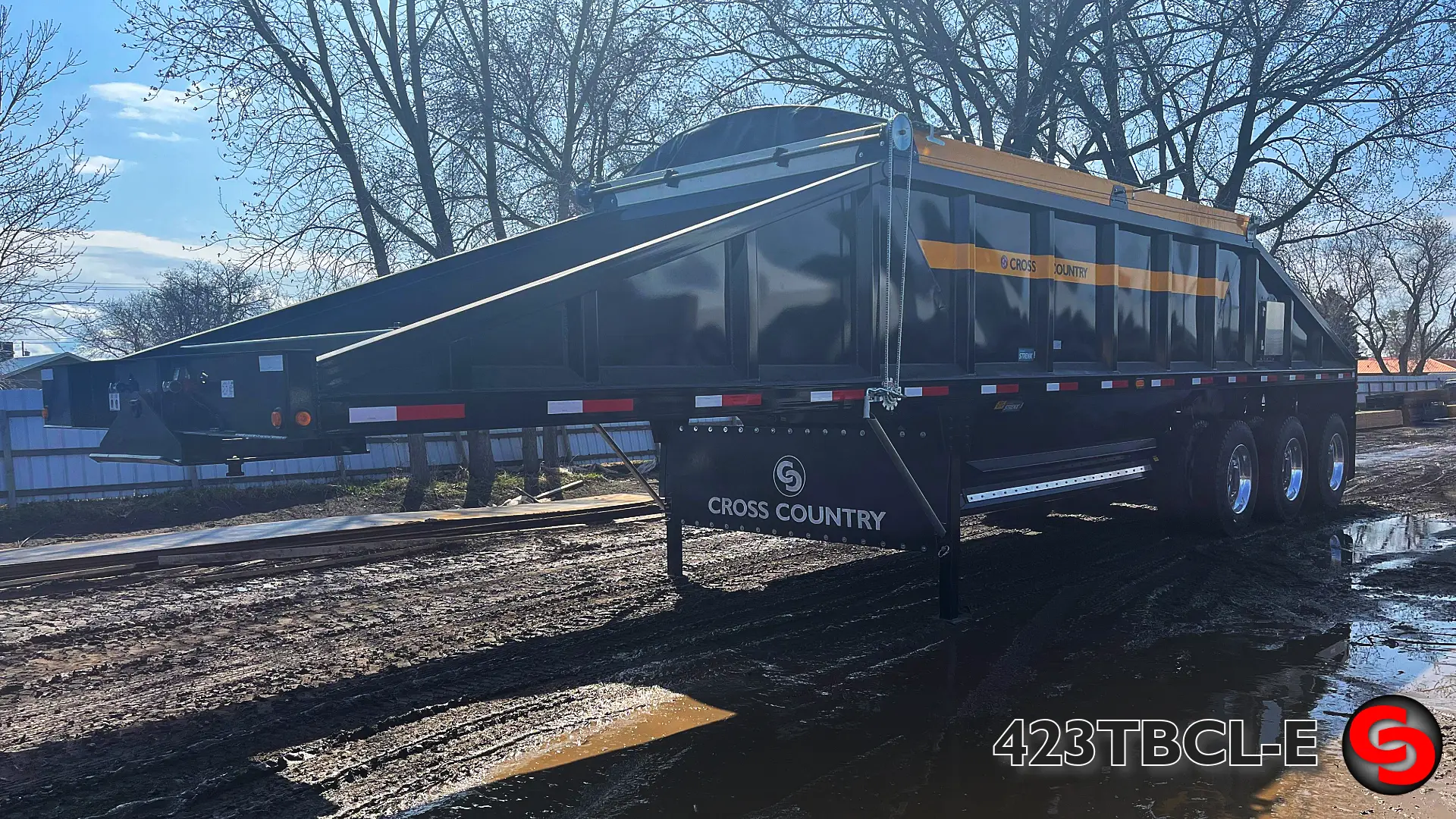

Visual Tour
