36' Tridem Drop Frame End Dump
The 350RE-DF Full Frame End Dump uses a drop frame design and lower tipping hinge for increased unloading stability.
Engineering & Design Overview
Full Frame End Dumps are engineered with a drop frame design and lower tipping hinge to provide increased stability while unloading. Available in tandem, tri-axle, and quad-axle configurations to meet your region's requirements. The frame is fabricated from 100,000 psi hi-tensile premium steel with an 18" radius body profile. Finished with Sherwin Williams Epoxy Primer and Top Coat in standard black, white, and silver — custom colours available.
Technical Specifications
| Configurations | Tandem, tri-axle, quad-axle |
|---|---|
| Frame | Fabricated 100,000 psi hi-tensile premium steel |
| Body Material | High-tensile 100XF or Hardox® 450 — 3/16", 1/4", 1/2" thicknesses |
| Body Design | 4" radius, square body; 60" sidewall height |
| Suspension | Hendrickson 30,000 lb air-ride |
| Axles | 25,000 lb with parallel axle ends, camshaft tubes, dust shields |
| Landing Gear | Heavy-duty 2-speed with self-levelling sand shoe |
| Sideboards | 12" wood |
| Lights | L.E.D. tail and marker lamps |
Available Options & Custom Upfits
Visual Tour

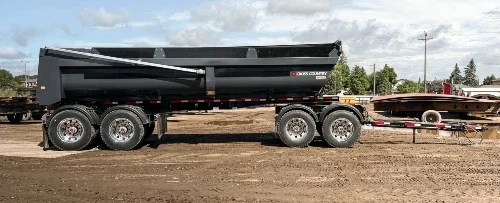

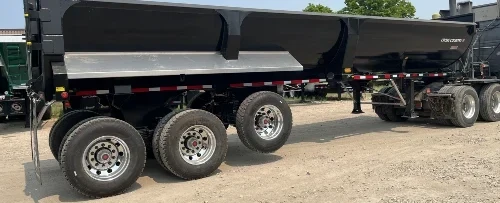

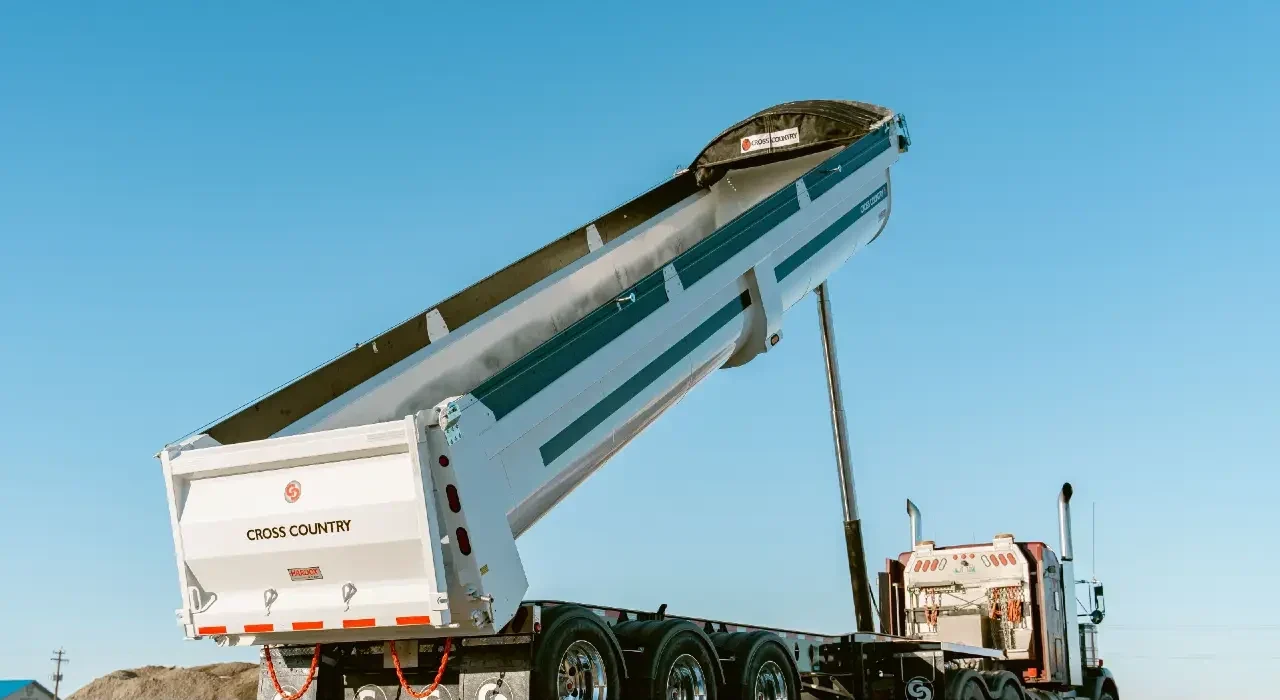

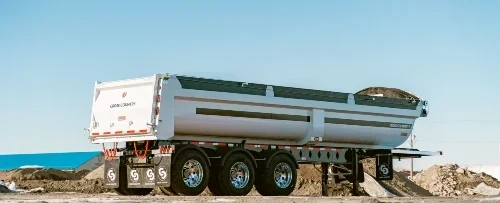

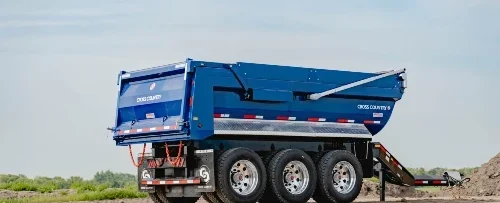

36' Tridem Drop Frame End Dump — Photos & Detail Views
Click any photo to enlarge. Field photography, engineering details, and build configurations of this model.
