48' Quad-Axle Belt Trailer
The 4804BT Quad-Axle Live Bottom delivers maximum payload with the 60-degree Hardox® 450 wall design.
Engineering & Design Overview
The 60-degree wall design ensures complete clean out, with walls constructed from Hardox® 450 wear-resistant steel. The re-engineered Strenx® 100 XF frame with 100,000 psi minimum yield strength keeps tare weight low. Available with S.P.I.F. steer-axle configuration. Cross Country
Technical Specifications
| Model | 4804BT |
|---|---|
| Axle Configuration | Quad-axle, S.P.I.F. steer-axle available |
| Wall Design | 60-degree for complete clean out |
| Wall Liner | Hardox® 450 wear-resistant steel |
| Frame | Strenx® 100 XF high-tensile steel — 100,000 psi min. yield |
| Chain | 4" pitch roller chain |
| Drive | 32:1 planetary gear system driven by hydraulic motor |
| Belt Control | Manifold with reversing valve and belt speed control |

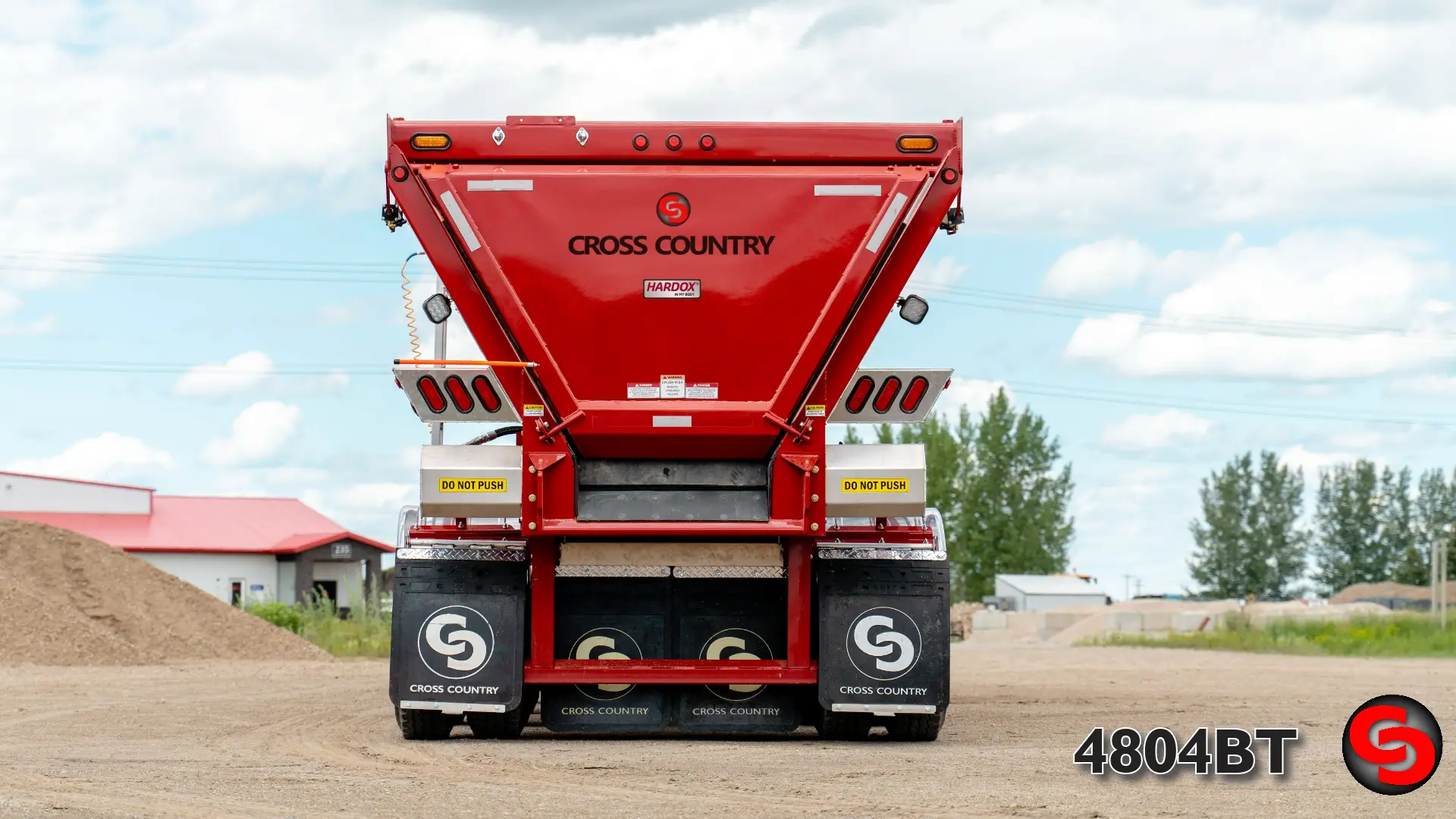

| Tailgate | Hardox® 450 |
Available Options & Custom Upfits
Visual Tour

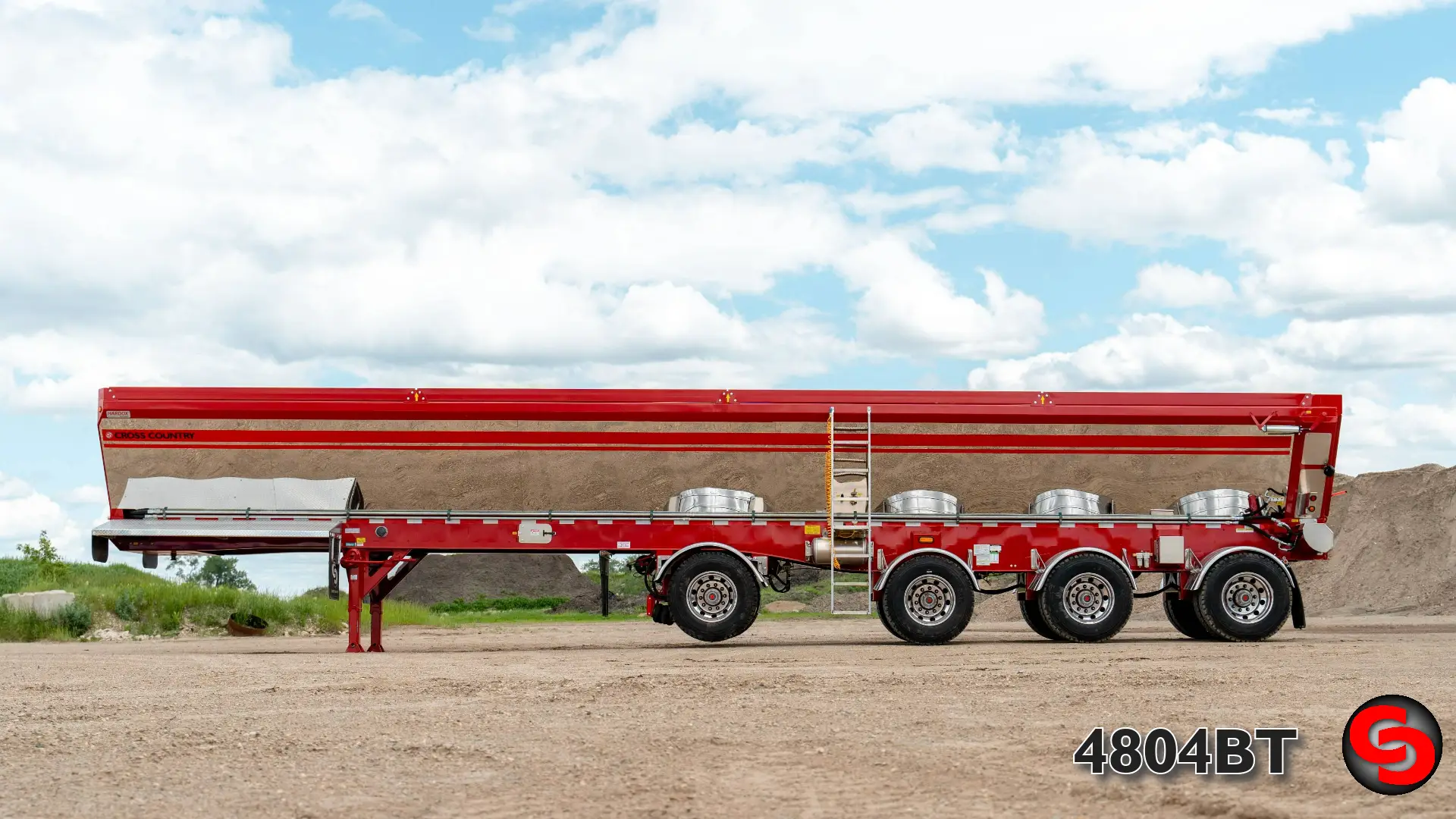

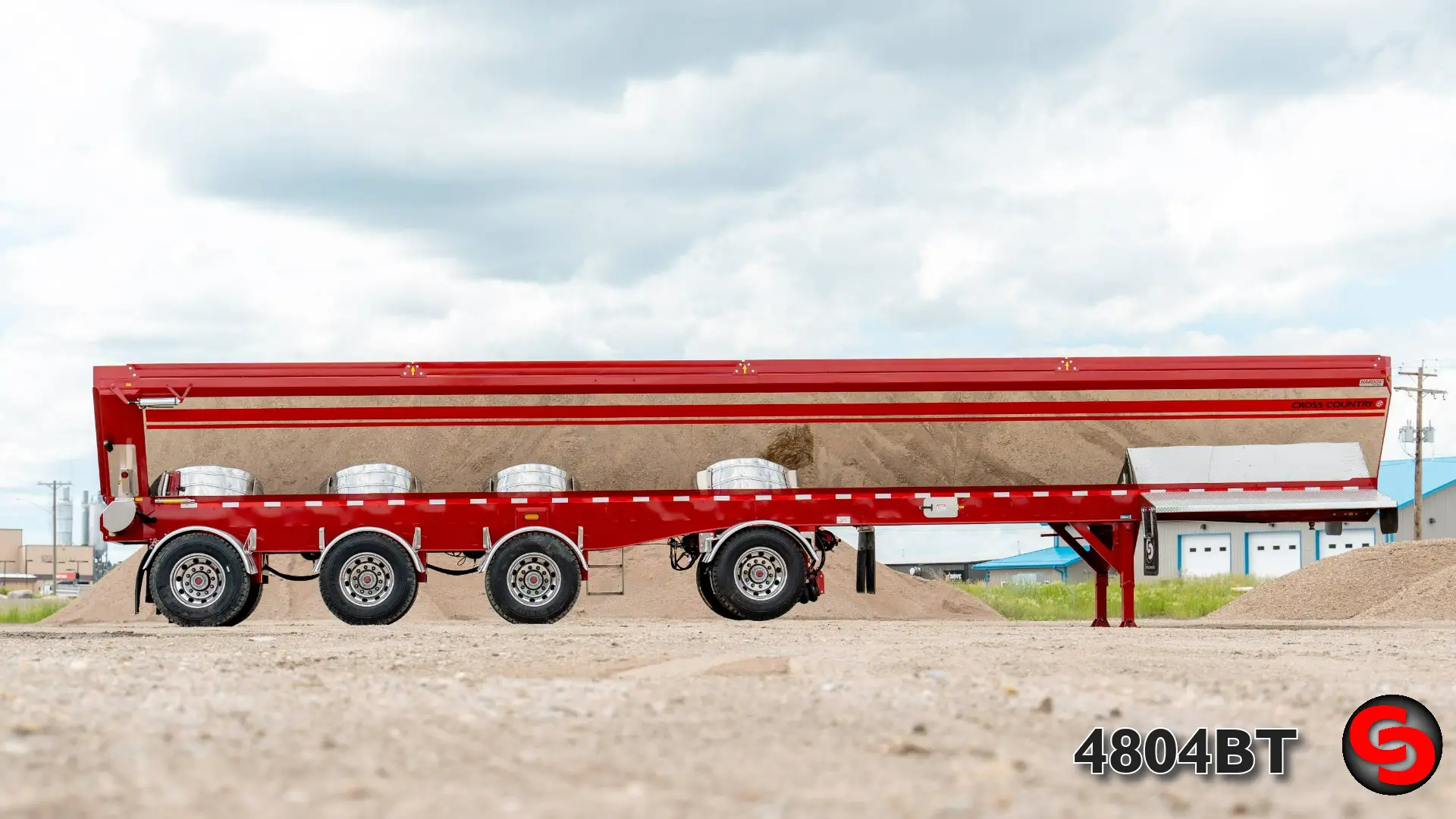

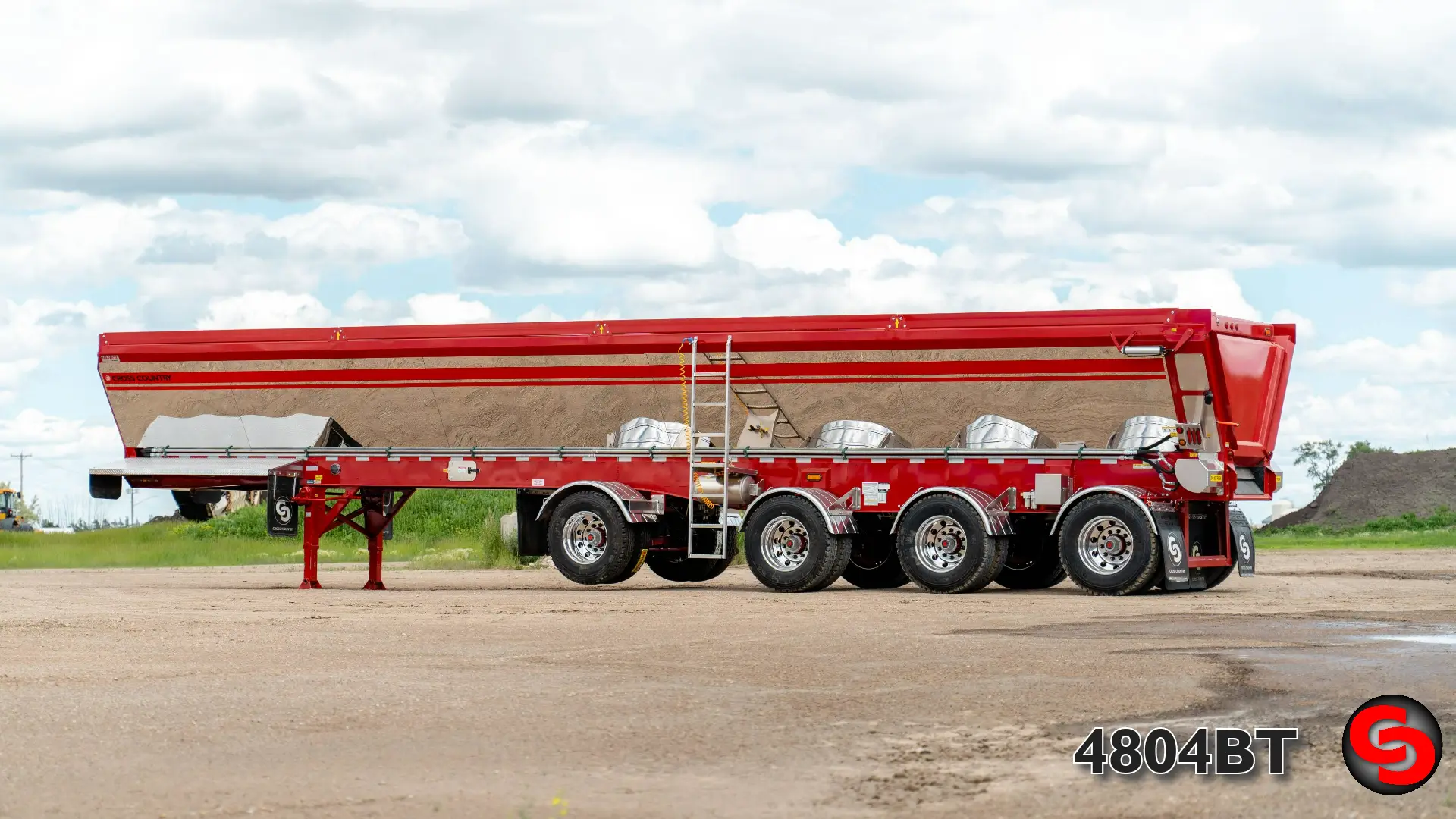

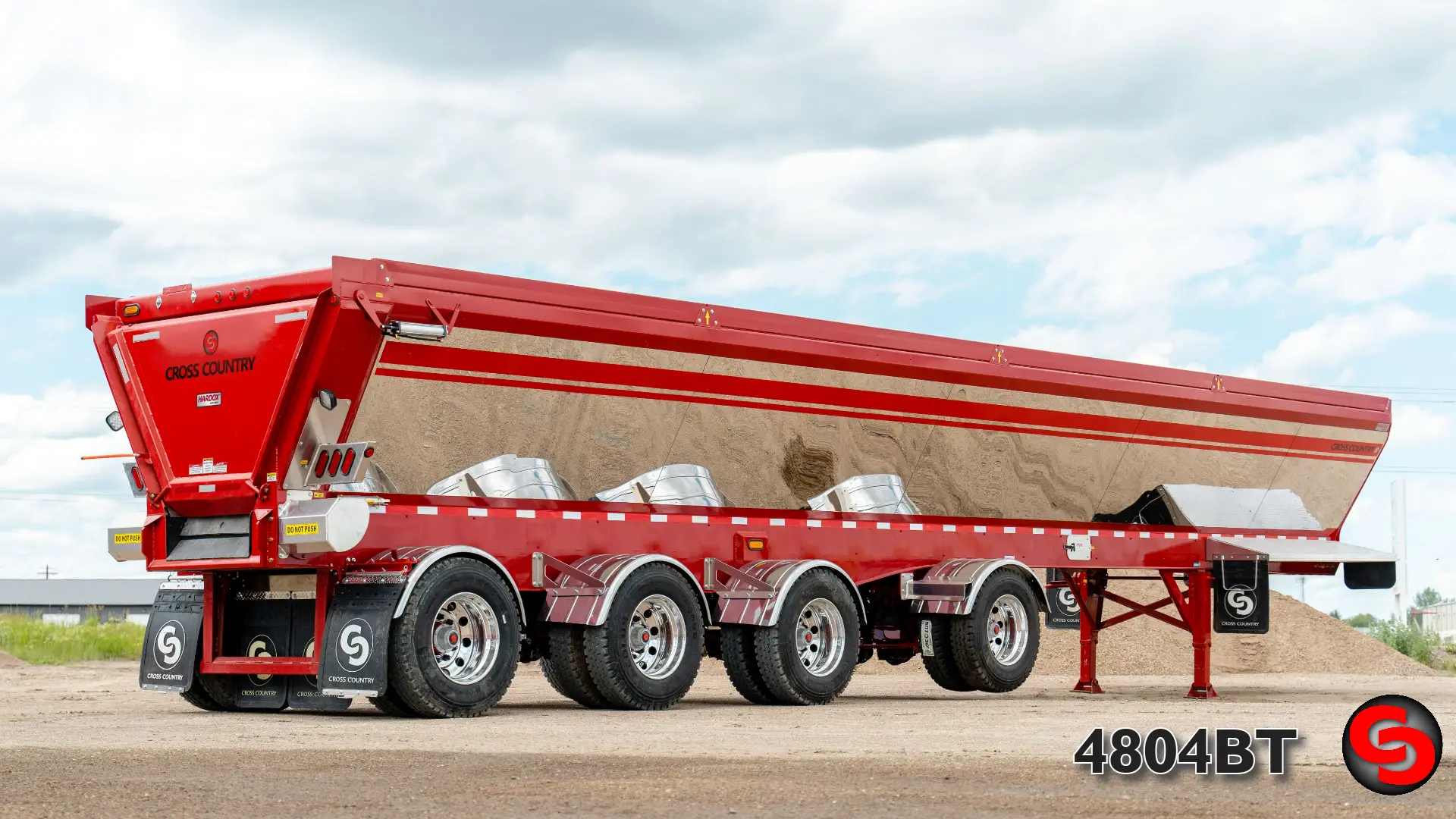

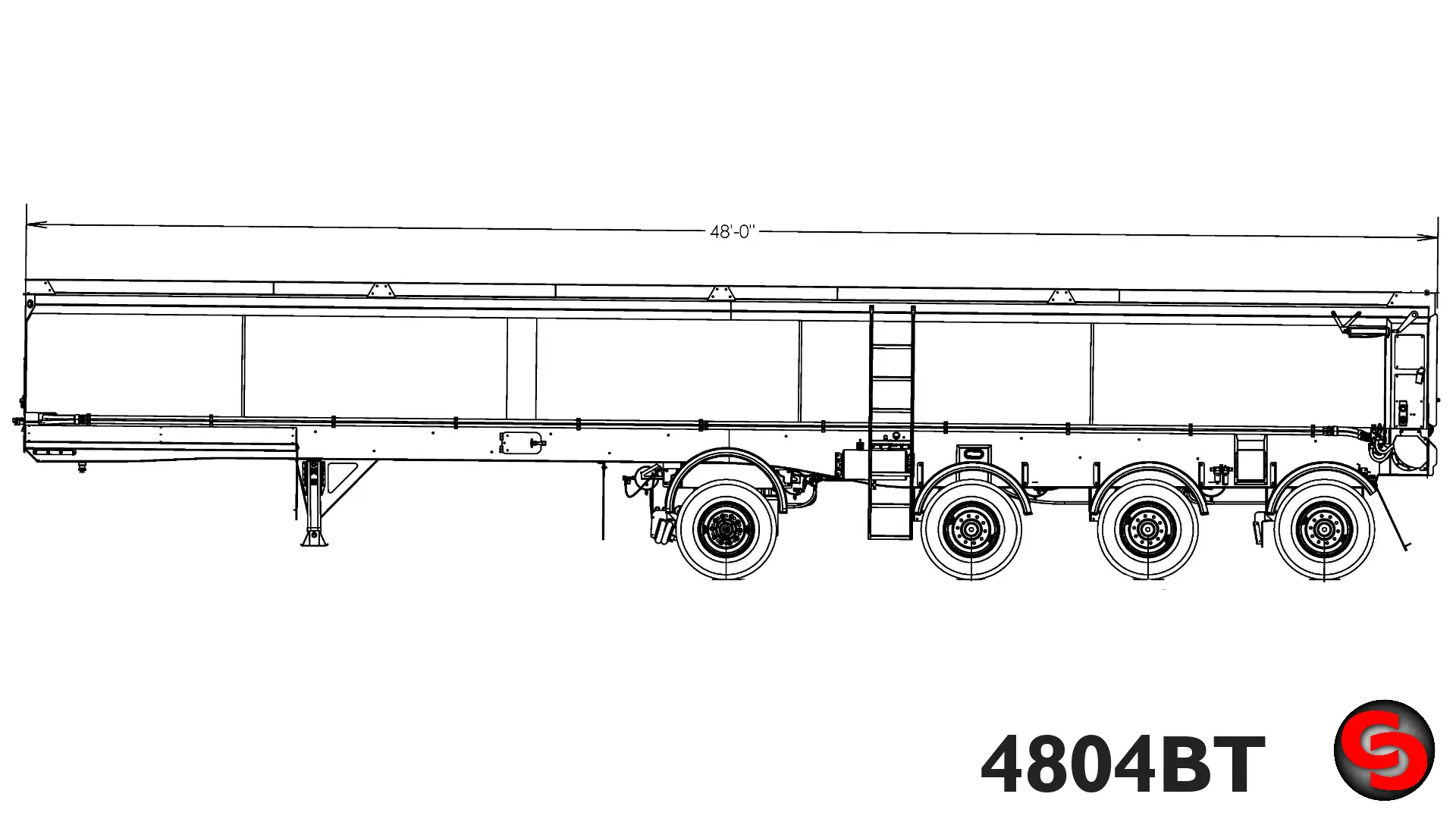

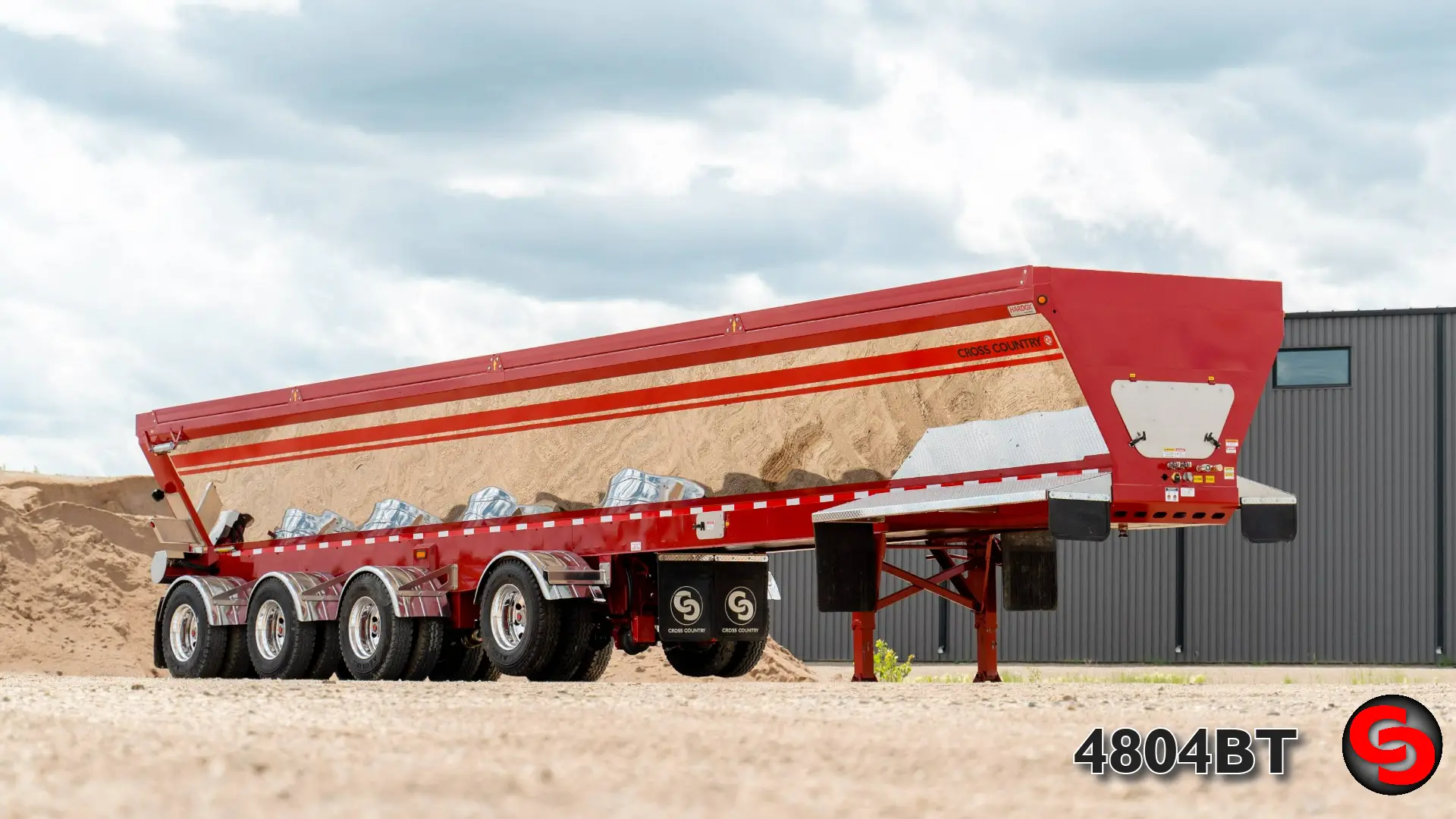

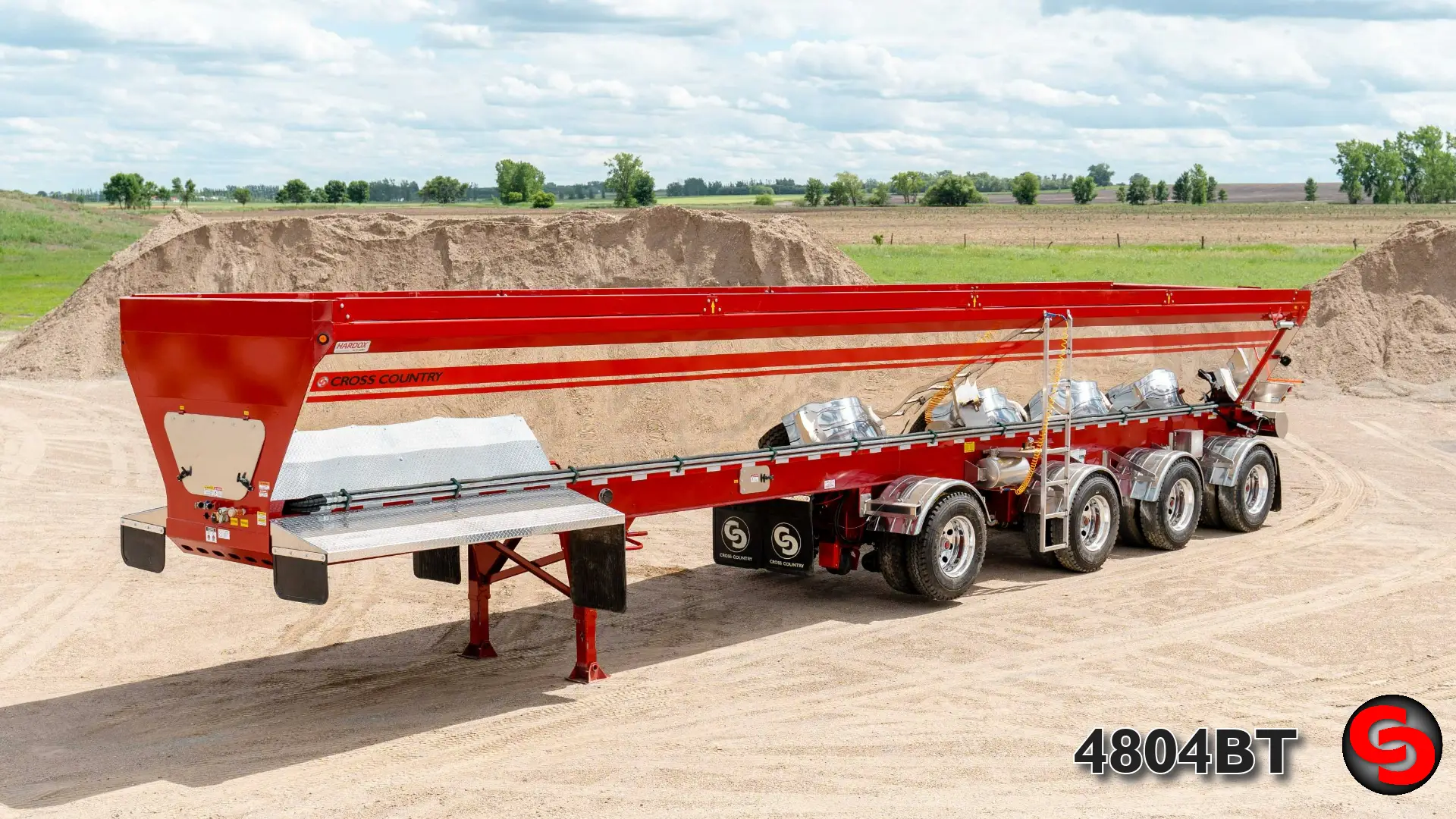

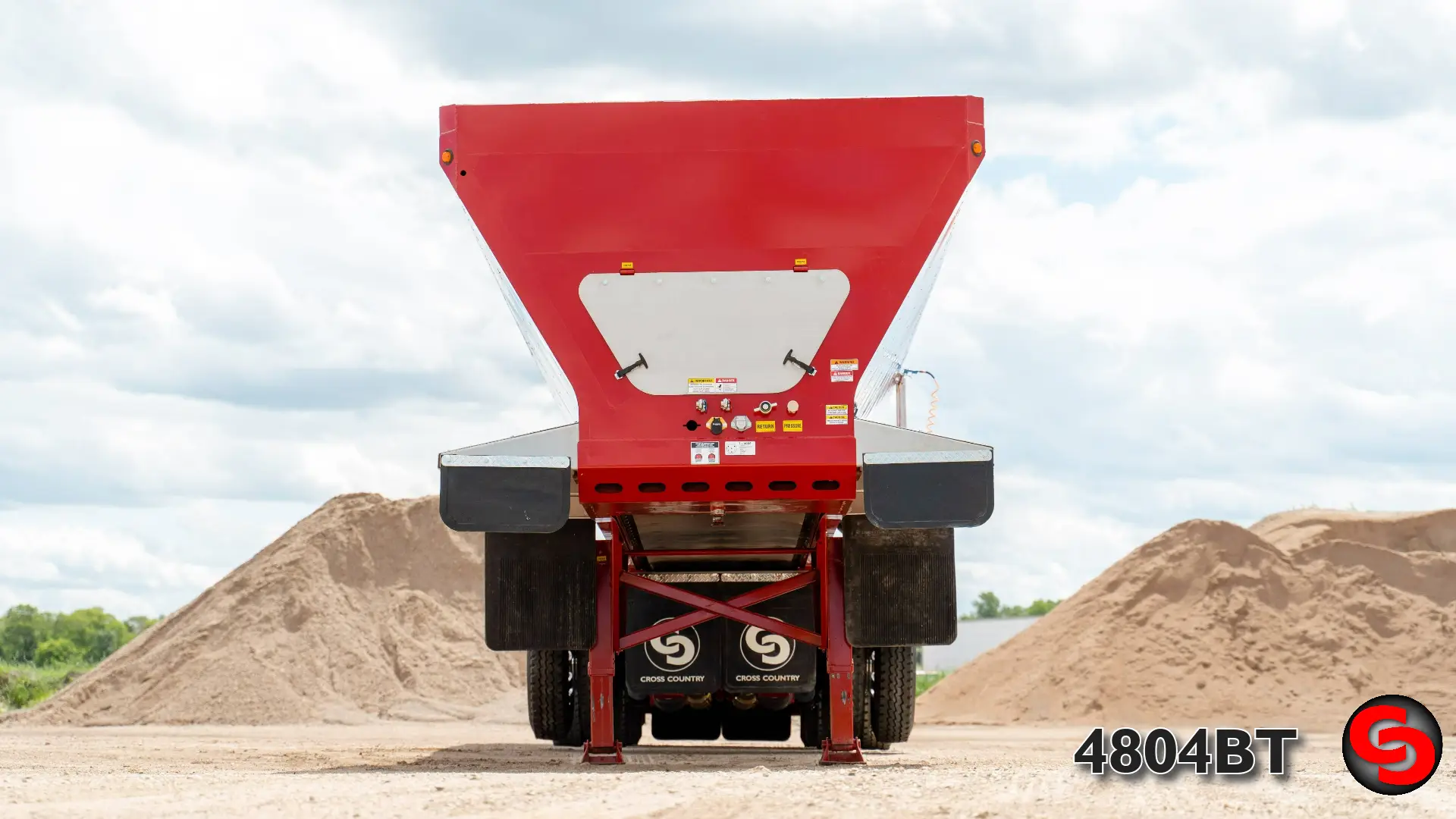

48' Quad-Axle Belt Trailer — Photos & Detail Views
Click any photo to enlarge. Field photography, engineering details, and build configurations of this model.
