533HTD Hydraulic Tilt Deck Trailer
The 533HTD Hydraulic Tilt Deck is the most convenient, speediest, and safest option for transporting heavy equipment — with a 10-degree load angle.
Engineering & Design Overview
With a 10-degree load angle and air or hydraulic ramps, loading and unloading is seamless. The 100,000 psi hi-tensile steel frame keeps tare weight at approximately 10,200 kg while maximizing payload. Hydraulic lift cylinders, D-rings on siderails, and a control box at the landing gear with load scale gauge put everything within easy reach.
Technical Specifications
| Model | 533HTD |
|---|---|
| Load Angle | 10 degrees |
| Frame | 100,000 psi hi-tensile steel |
| Tare Weight | Approx. 10,200 kg |
| Decking | Oak flooring |
| Ramps | Air or hydraulic |
| Controls | Deck lift control and control box at landing gear with load scale gauge |
| Tie-Downs | D-rings on siderails |
Available Options & Custom Upfits
Visual Tour

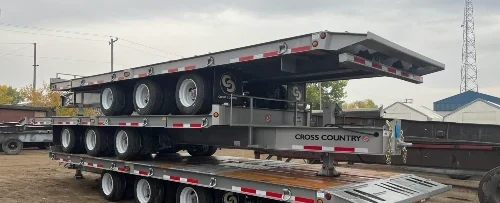

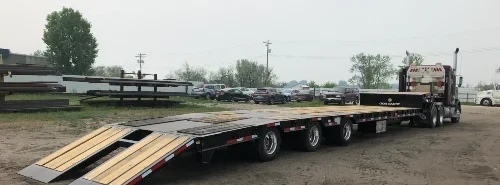

533HTD Hydraulic Tilt Deck Trailer — Photos & Detail Views
Click any photo to enlarge. Field photography, engineering details, and build configurations of this model.
