38' Tridem Side Dump
The 383SDX Side Dump is in a class of its own — designed to handle the stresses of hauling day after day.
Engineering & Design Overview
Built to hold up in the harshest conditions with controlled dump action and improved unloading stability. The uniquely-designed tub with flex corners eliminates corner cracking, with no centre divider for clean unloading. Hardox® 450 body and 100,000 psi hi-tensile frame, manufactured in Morden, Manitoba with Hardox® In My Body and My Inner Strenx® certifications.
Technical Specifications
| Model | 383SDX |
|---|---|
| Body Material | Hardox® 450 premium wear plate — 3/16" and 1/4" thicknesses |
| Suspension | 30,000 lb Hendrickson air-ride with wider track axles |
| Axles | 25,000 lb with P spindles, camshaft enclosures, dust shields |
| Lift Cylinders | 5" hydraulic |
| Tub Design | Flex corners, no centre divider |
| Tarp | Electric side-roll — mesh or vinyl |
| Fenders | Plastic half-moon rear; aluminum front with rubber belting |
Available Options & Custom Upfits
Visual Tour

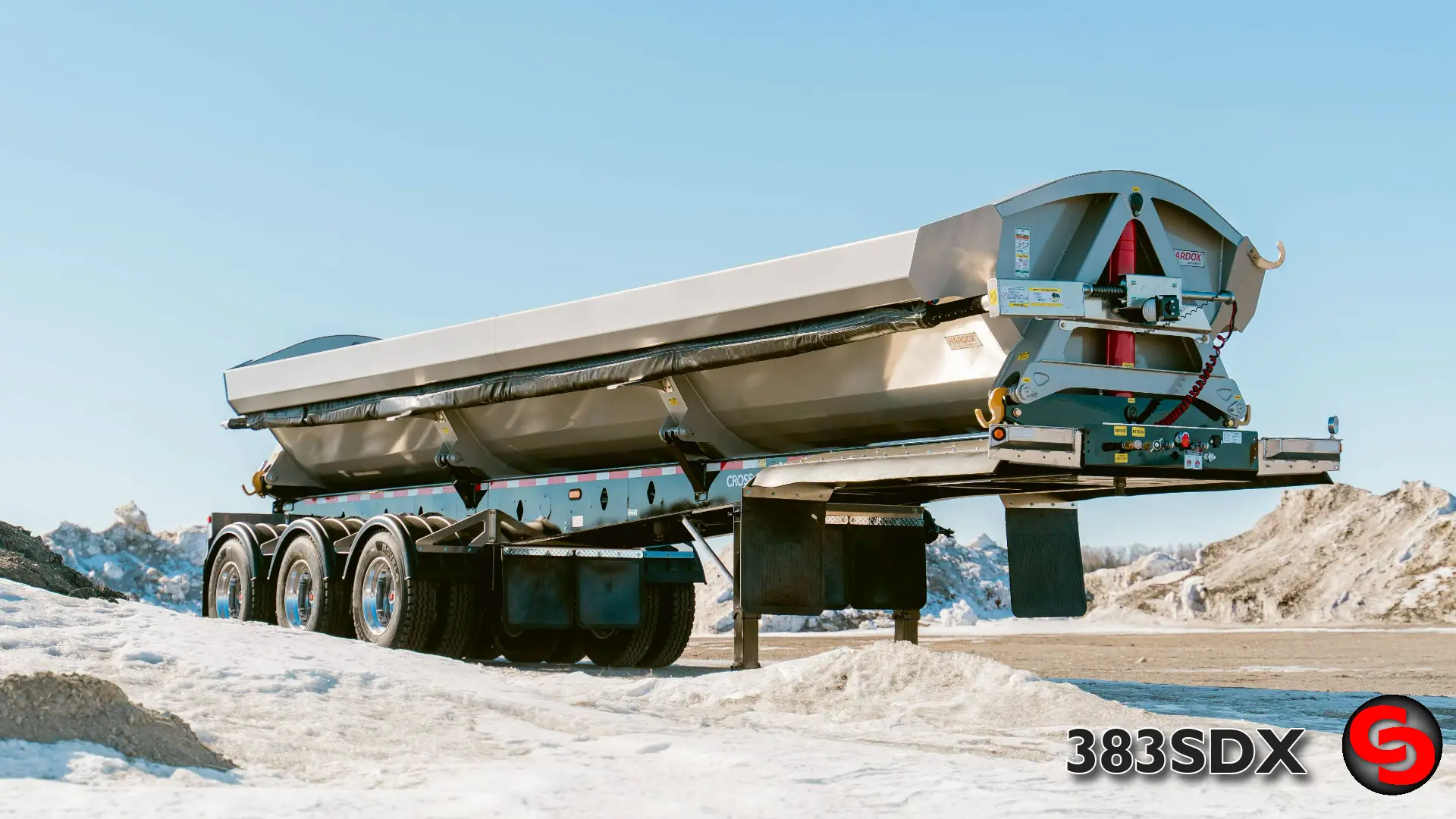

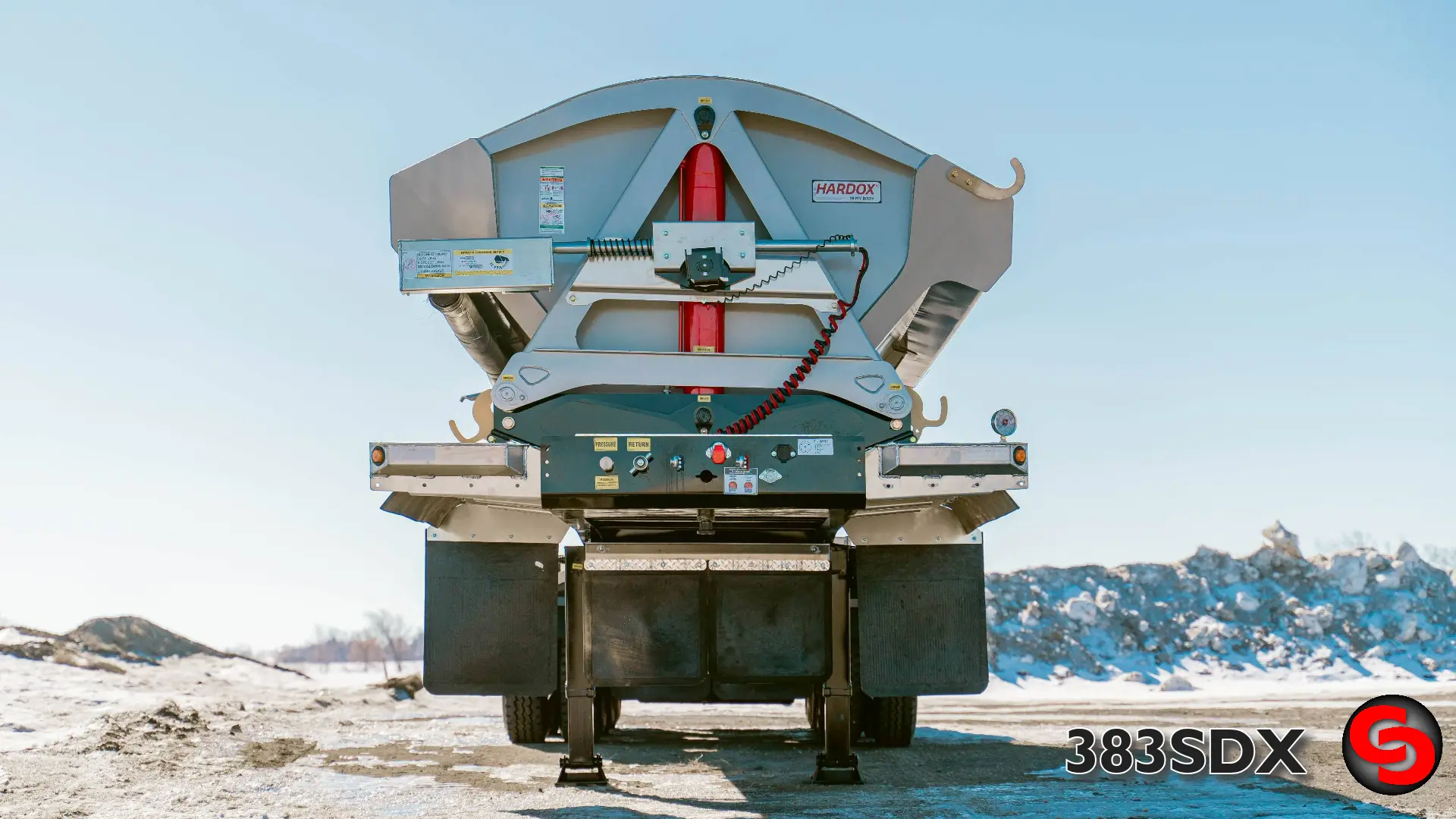

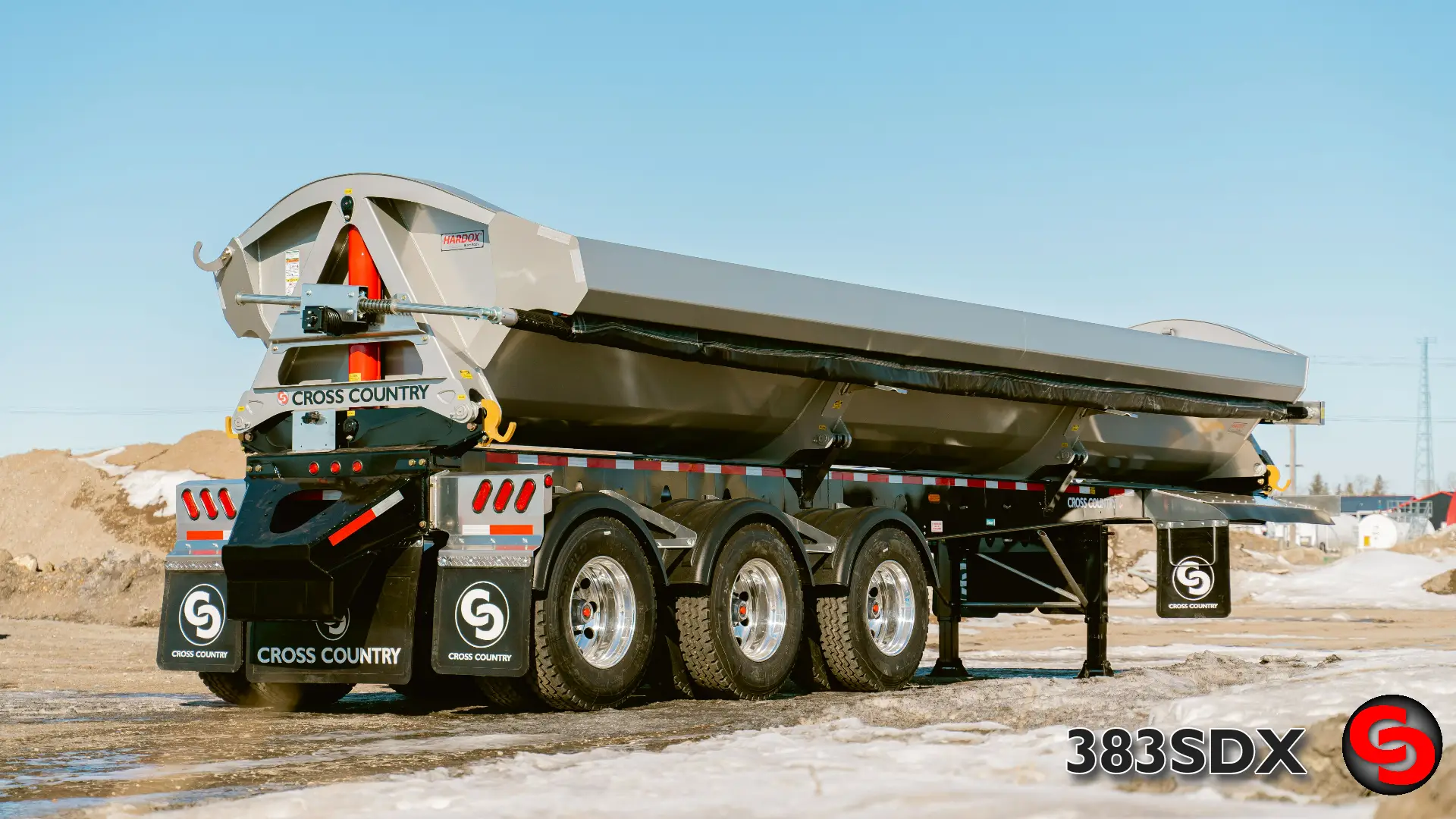

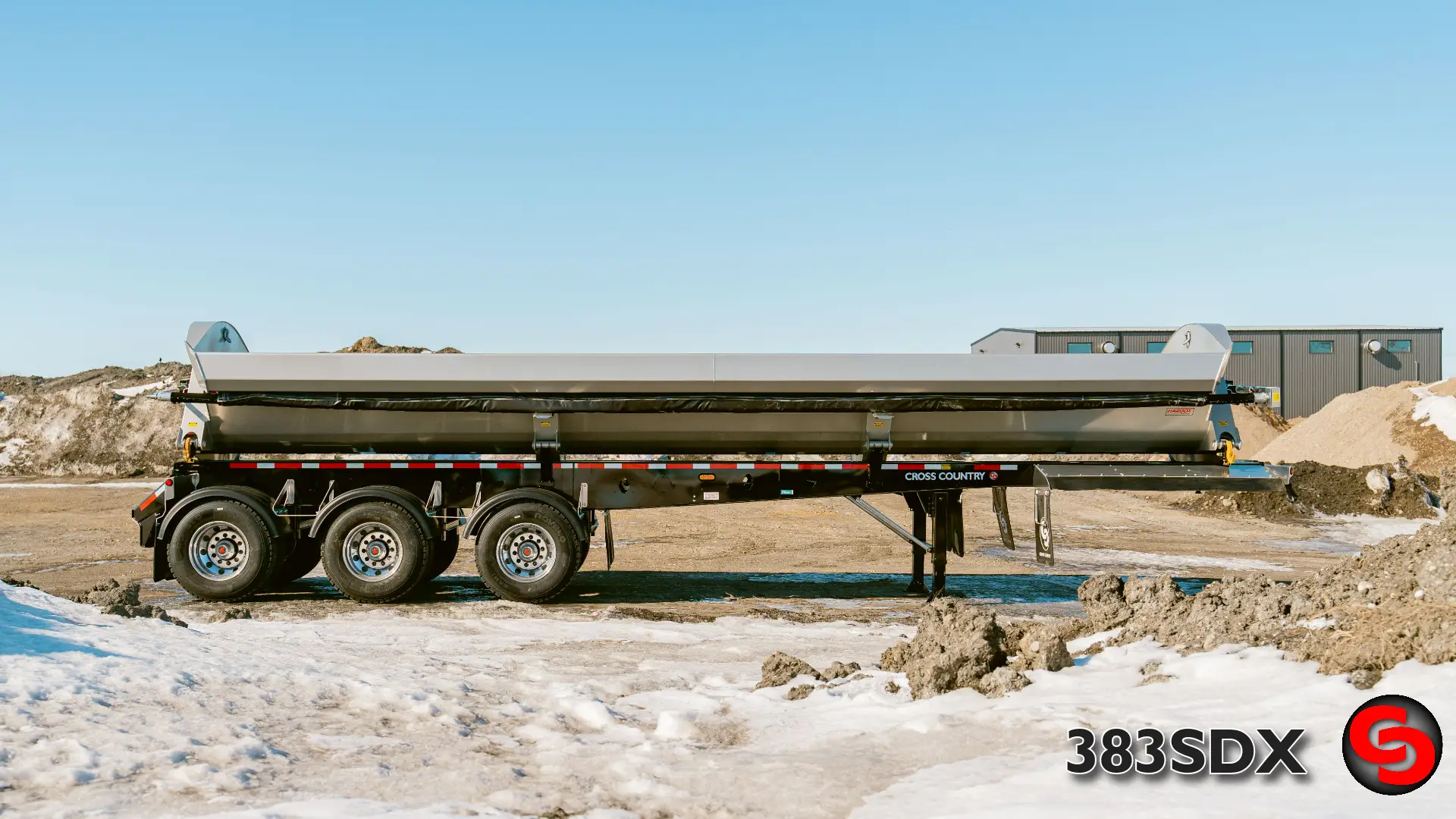

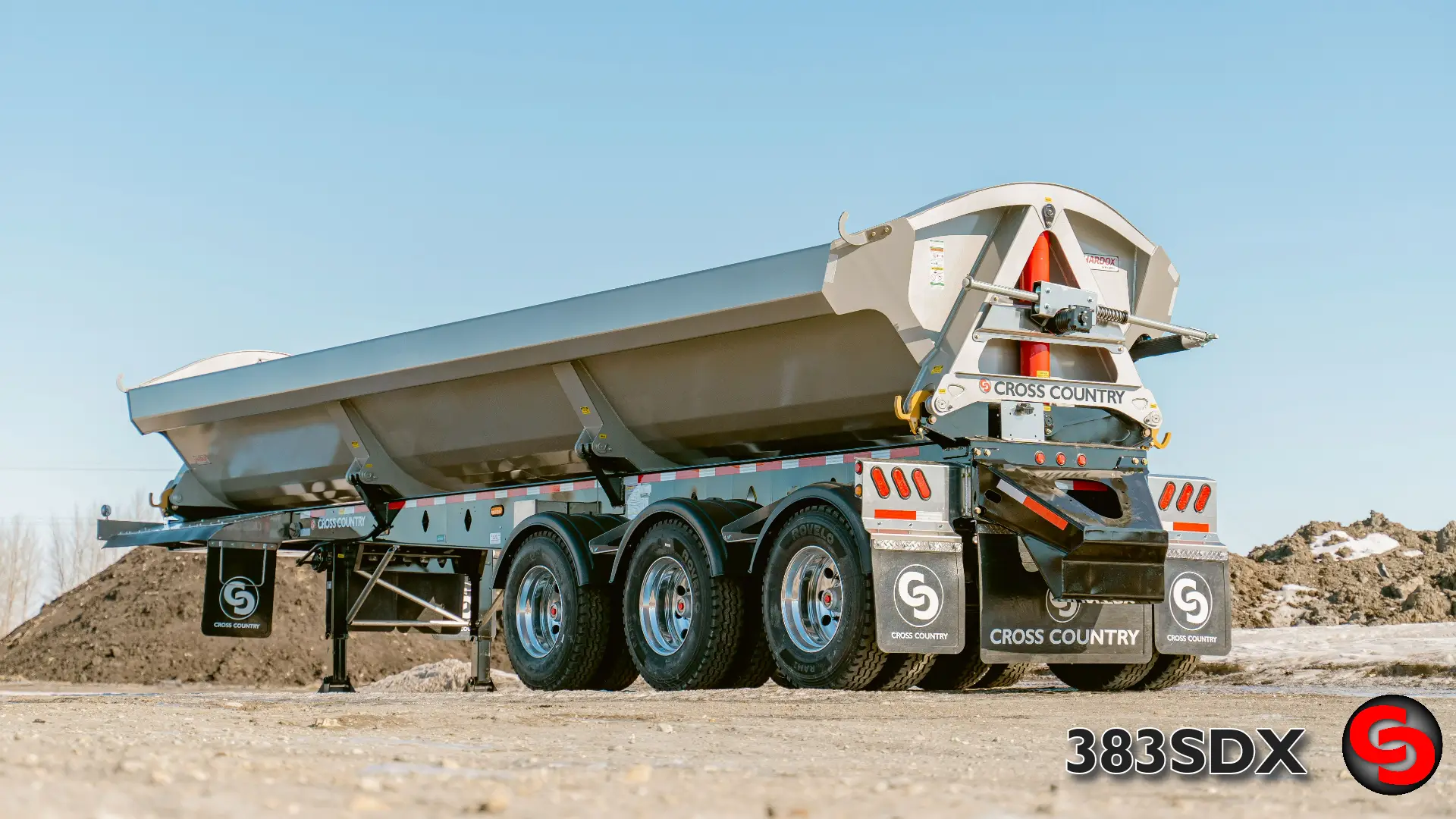

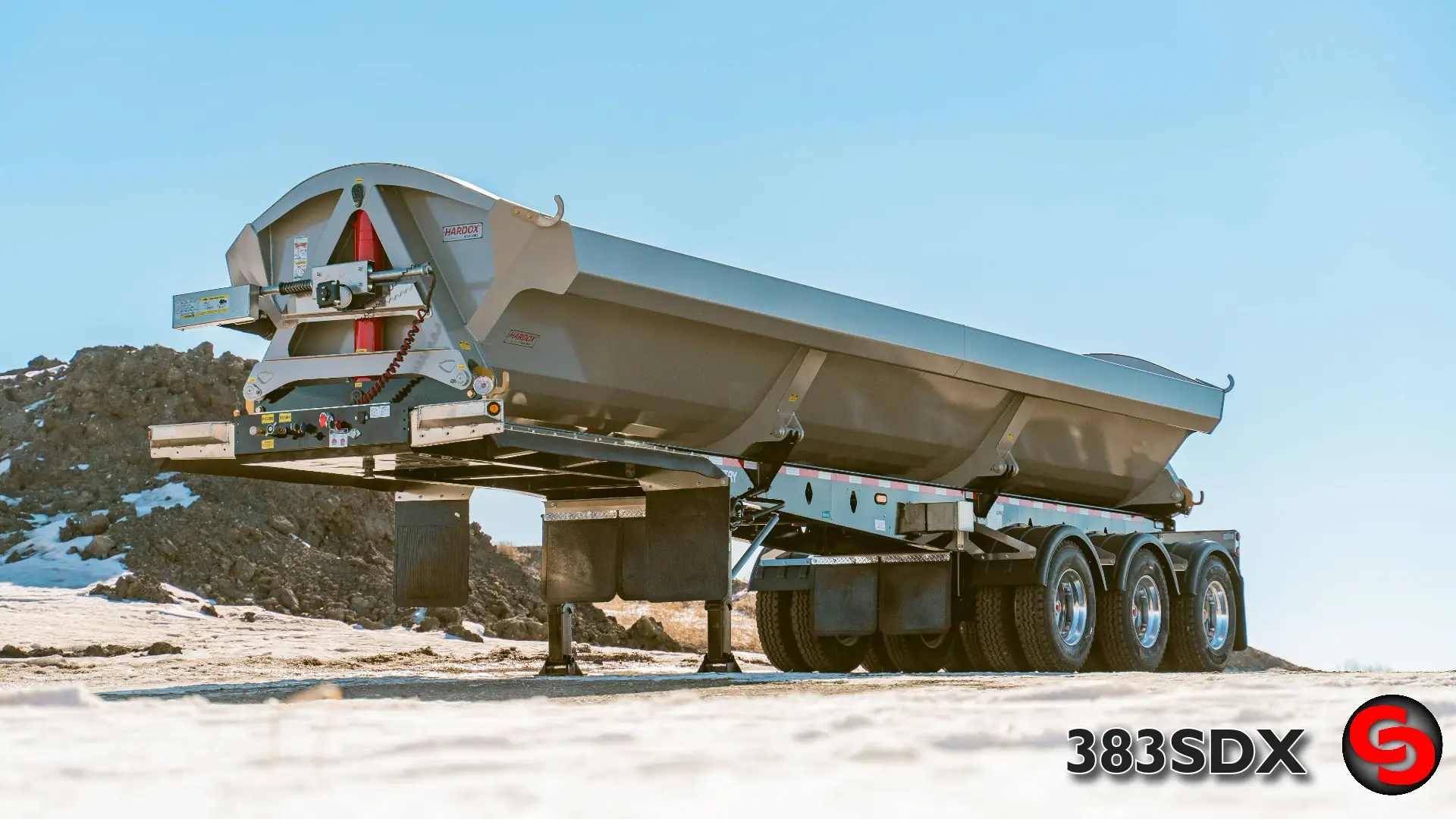

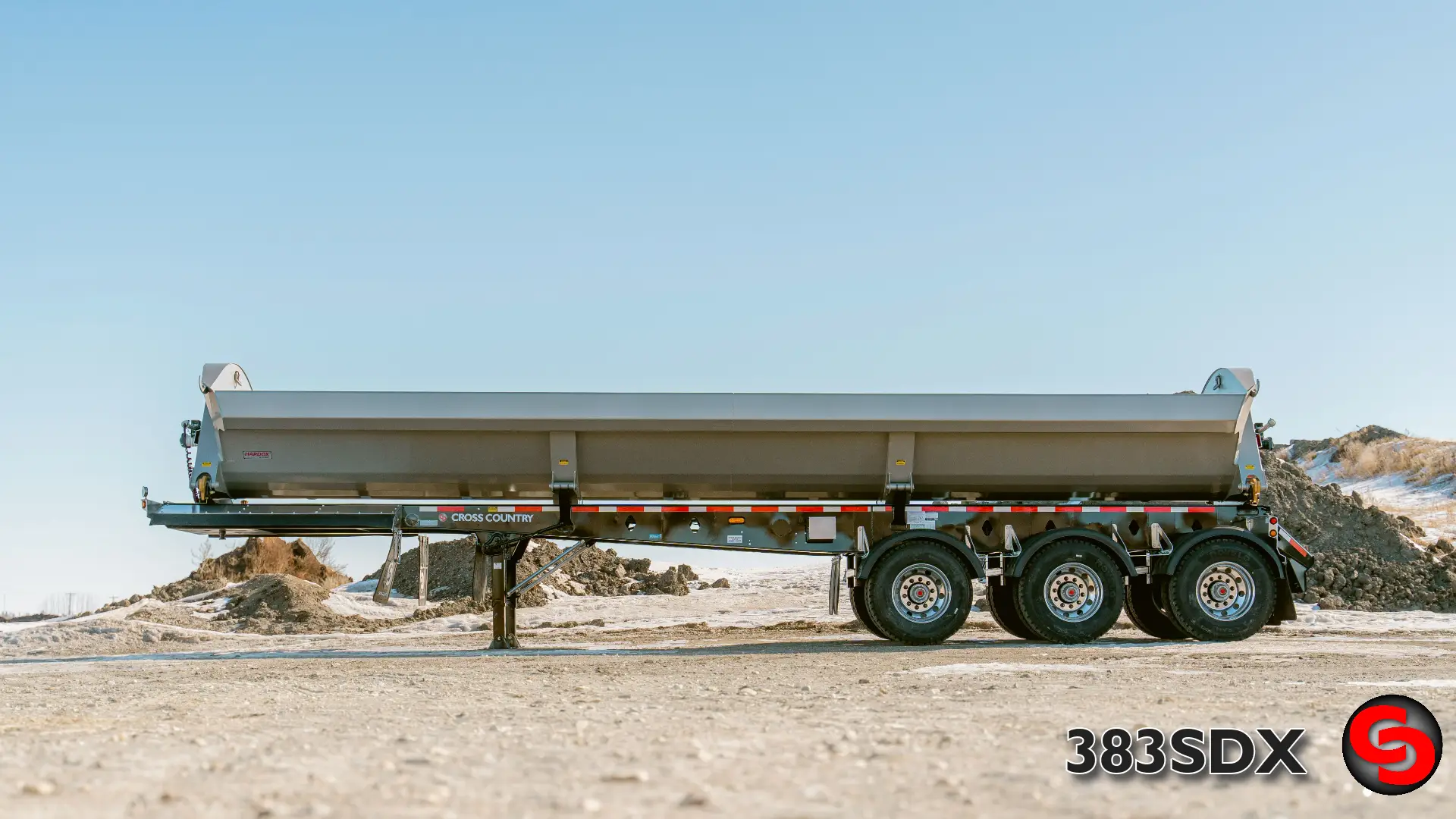

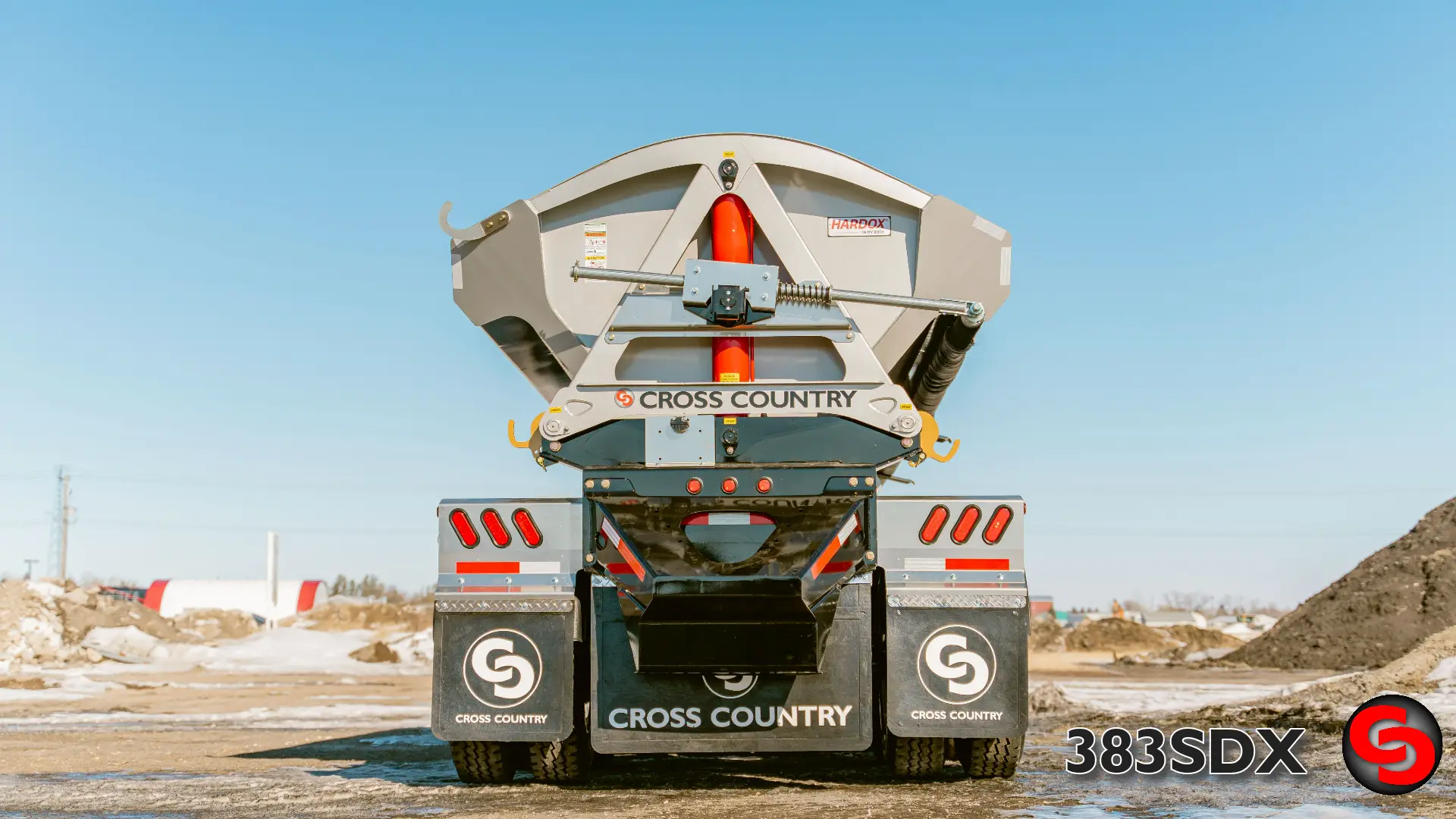

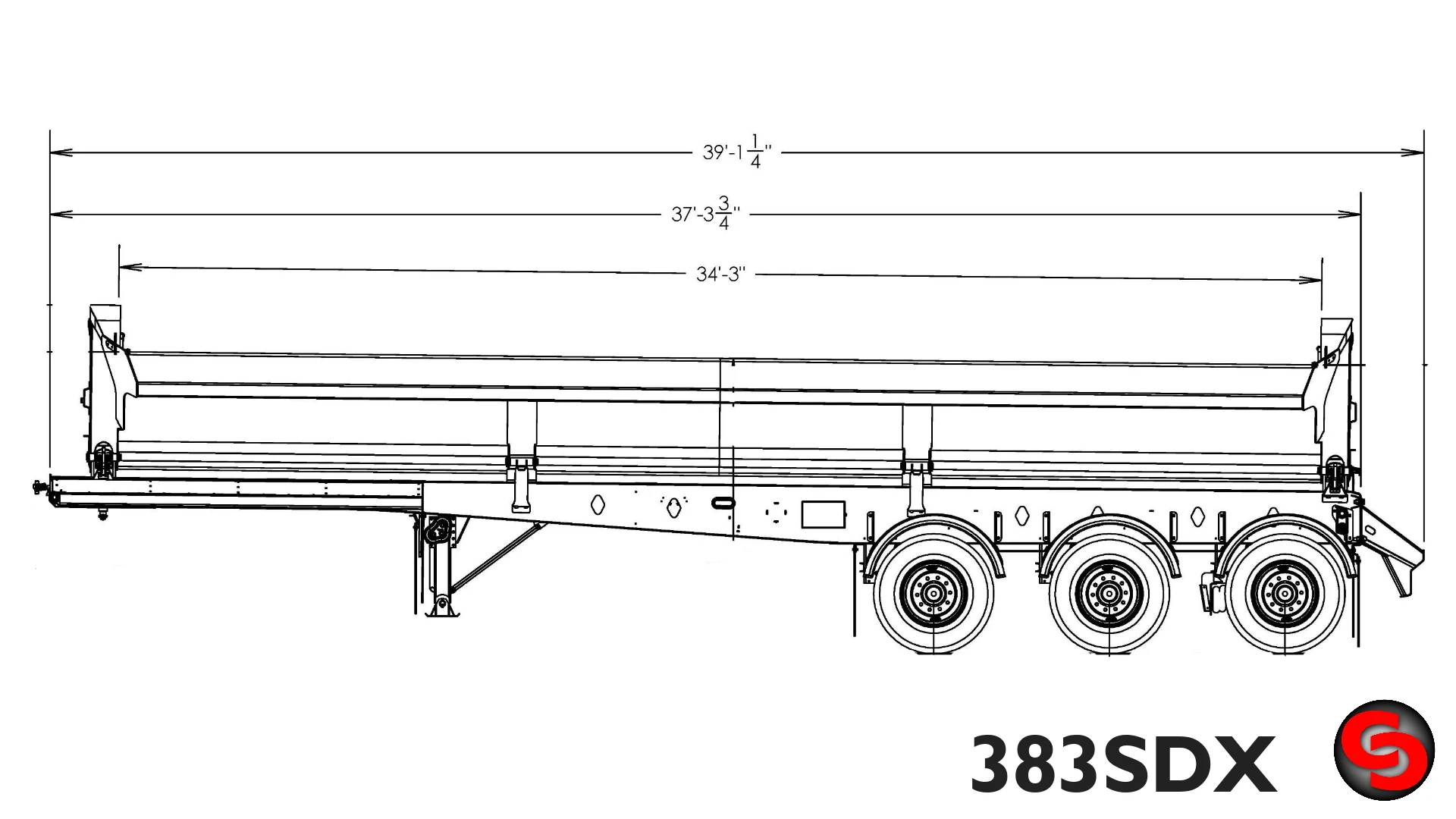

38' Tridem Side Dump — Photos & Detail Views
Click any photo to enlarge. Field photography, engineering details, and build configurations of this model.
