46' Tridem Side Dump
The 463SDX Side Dump provides superior stability and handles the road like no other — controlled dump action with improved unloading stability.
Engineering & Design Overview
Cross Country Side Dumps are in a class of their own — designed to handle the stresses of hauling day after day and built to hold up in the harshest conditions. The lineup meets North America's diverse geographical requirements. Hardox® 450 body, electric side-roll tarp protected by the top rail, and premium automotive finish. Manufactured in Canada with Hardox® In My Body and My Inner Strenx® certifications.
Technical Specifications
| Model | 463SDX |
|---|---|
| Body Material | Hardox® 450 premium wear plate — 3/16" and 1/4" thicknesses |
| Suspension | 30,000 lb Hendrickson air-ride with wider track axles |
| Axles | 25,000 lb with P spindles, camshaft enclosures, dust shields |
| Lift Cylinders | 5" hydraulic |
| Hinge Support | A-Frame pedestal |
| Tub Design | Flex corners, no centre divider |
| Tarp | Electric side-roll — mesh or vinyl |
| Landing Gear | Heavy-duty 2-speed with self-levelling sand shoe |
Available Options & Custom Upfits

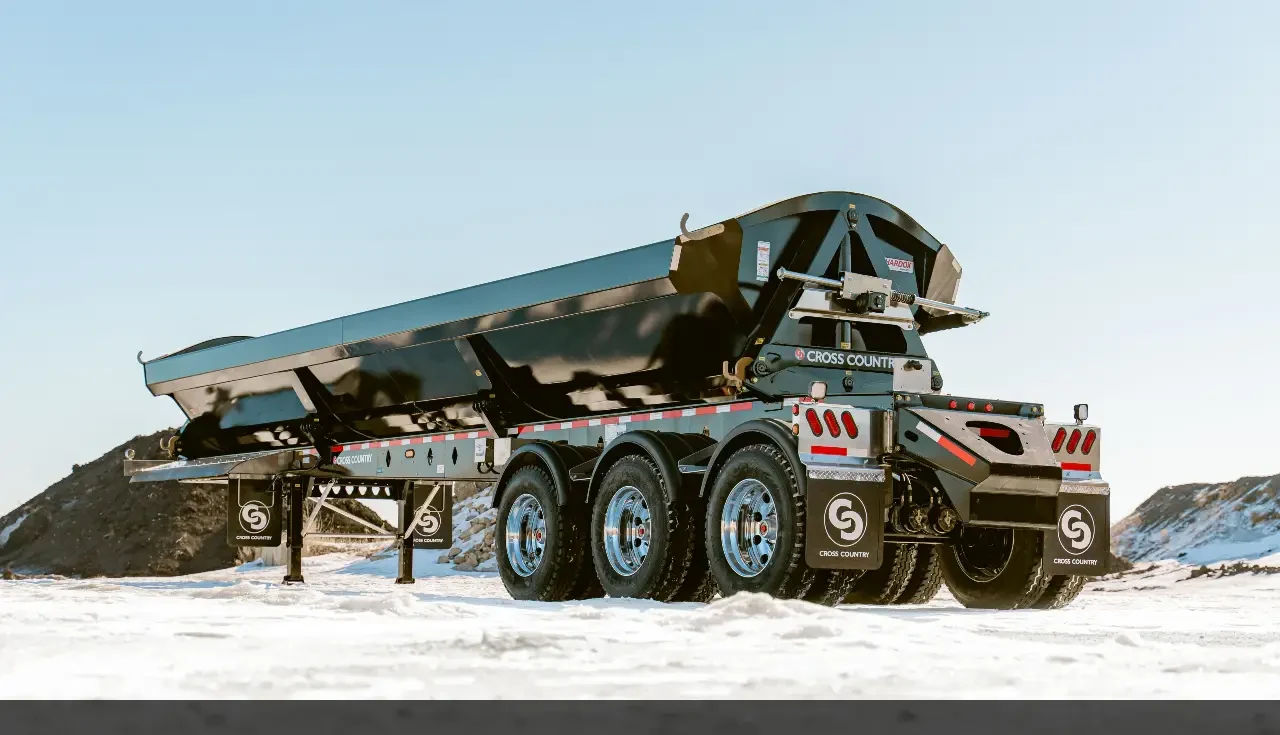

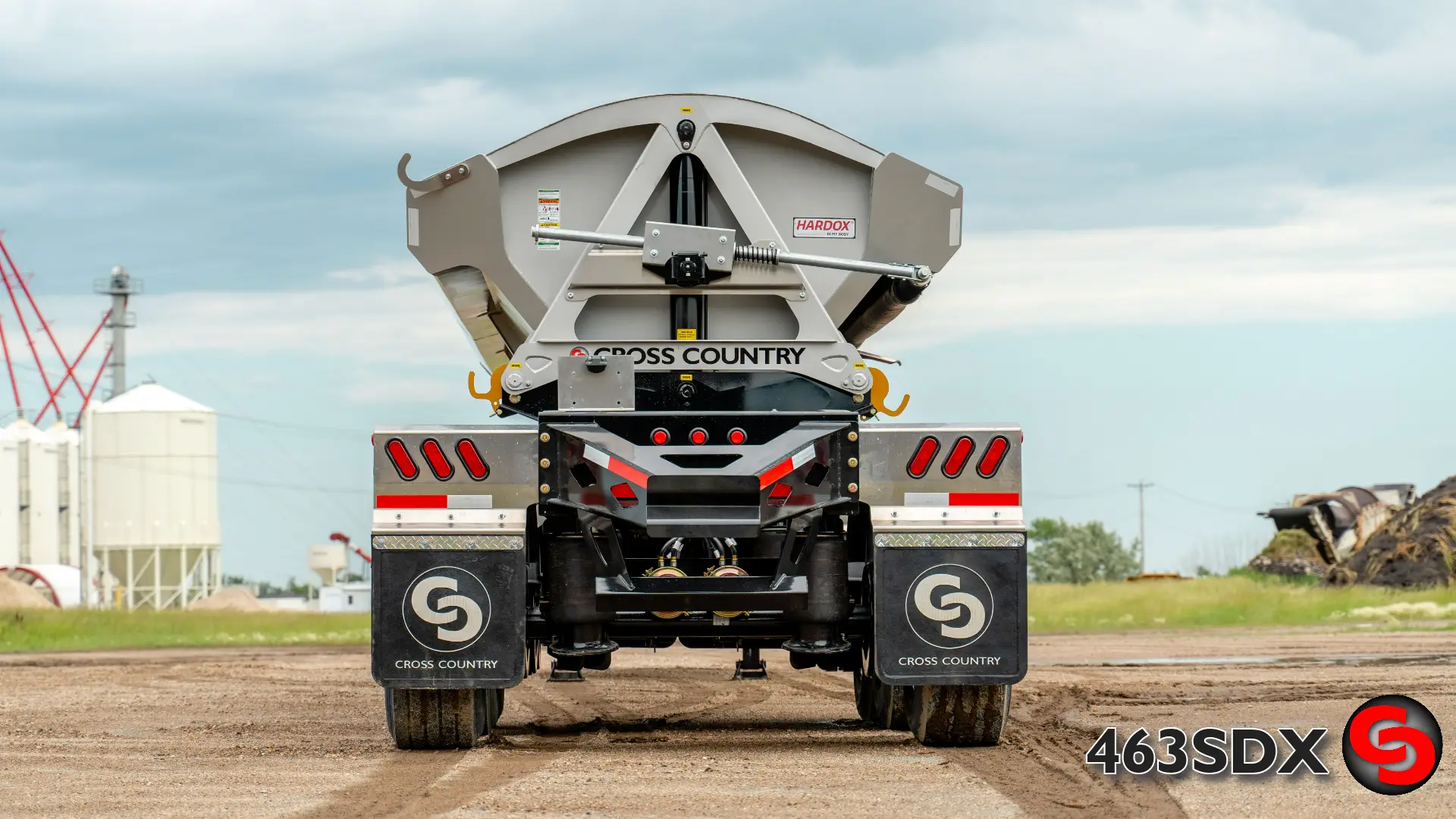

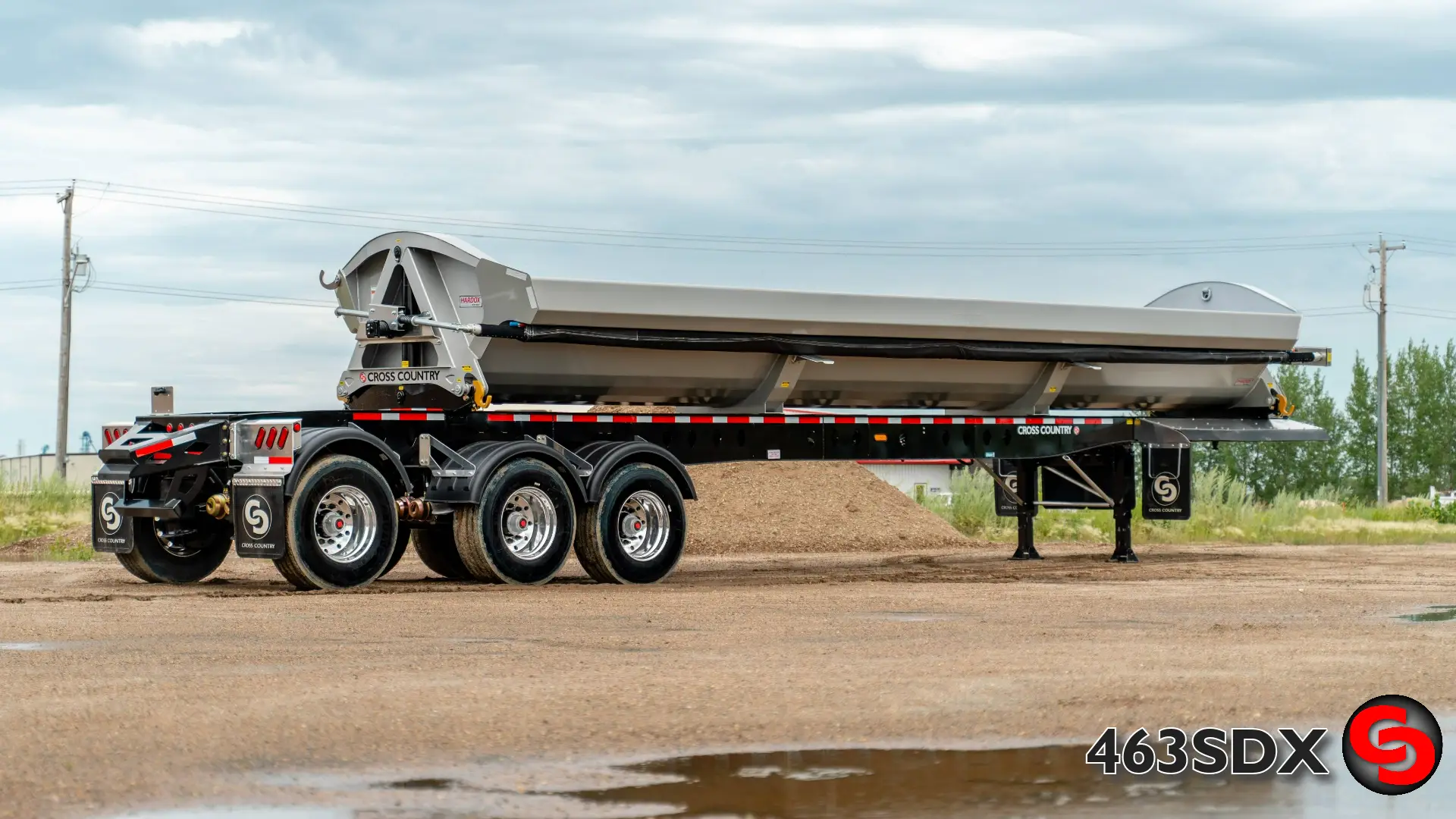

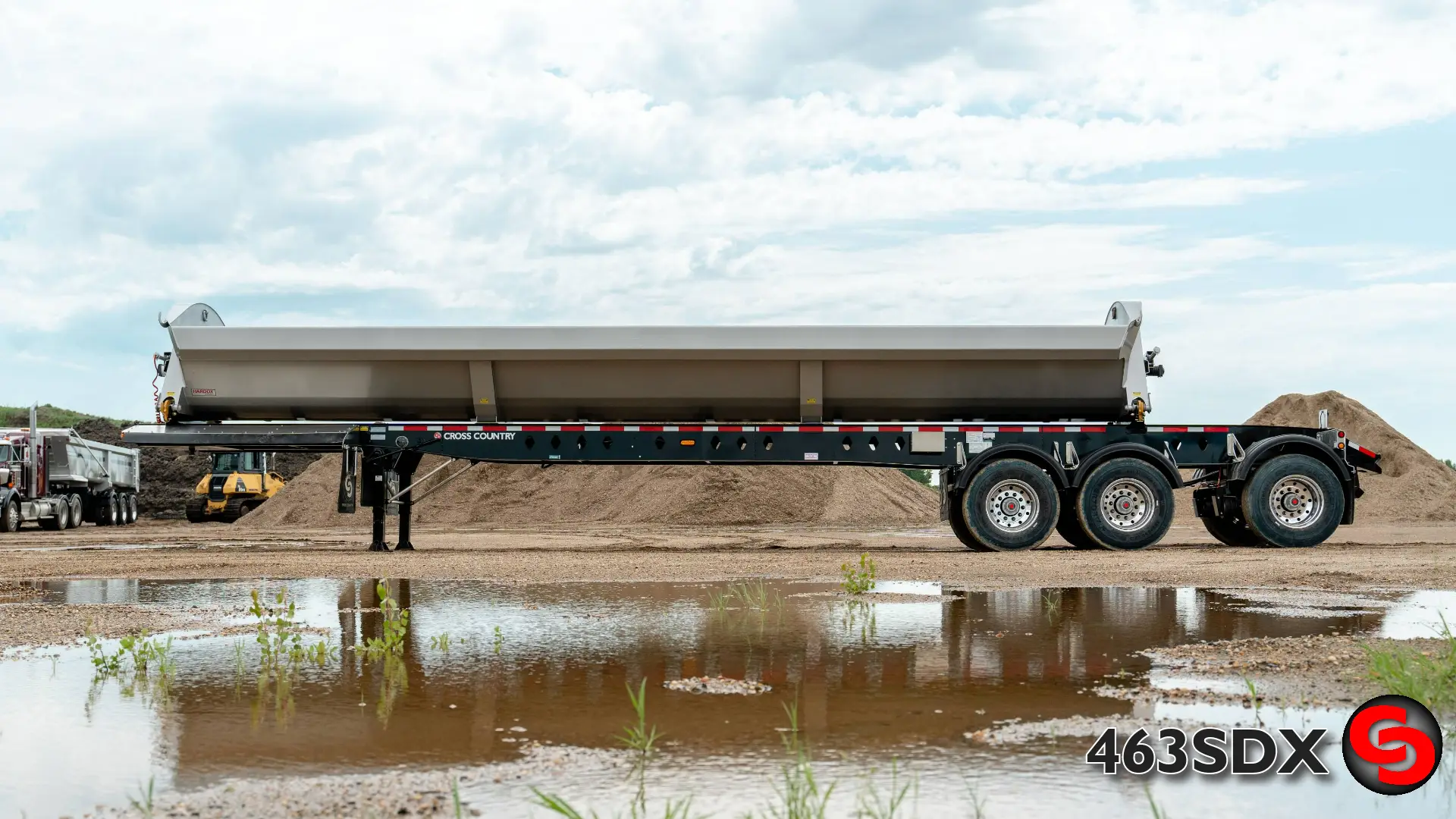

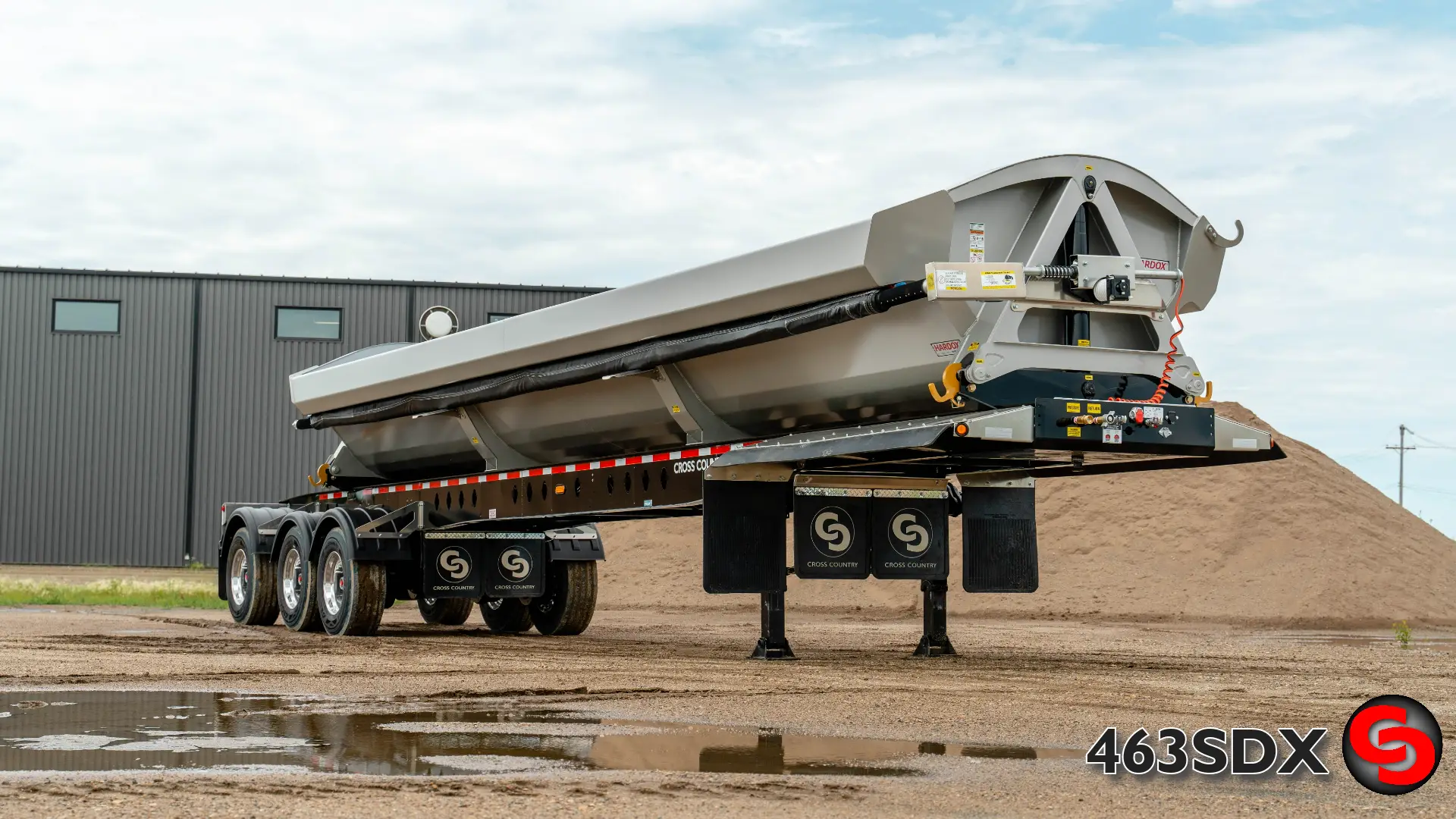

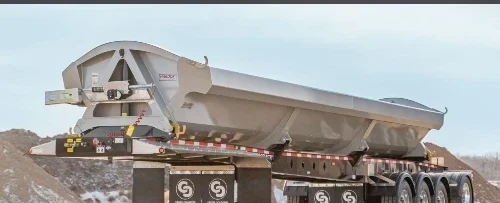

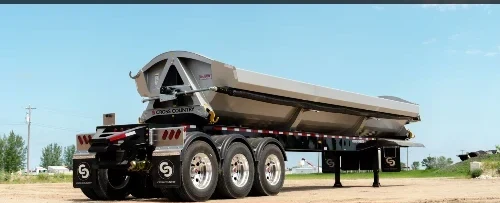

Visual Tour

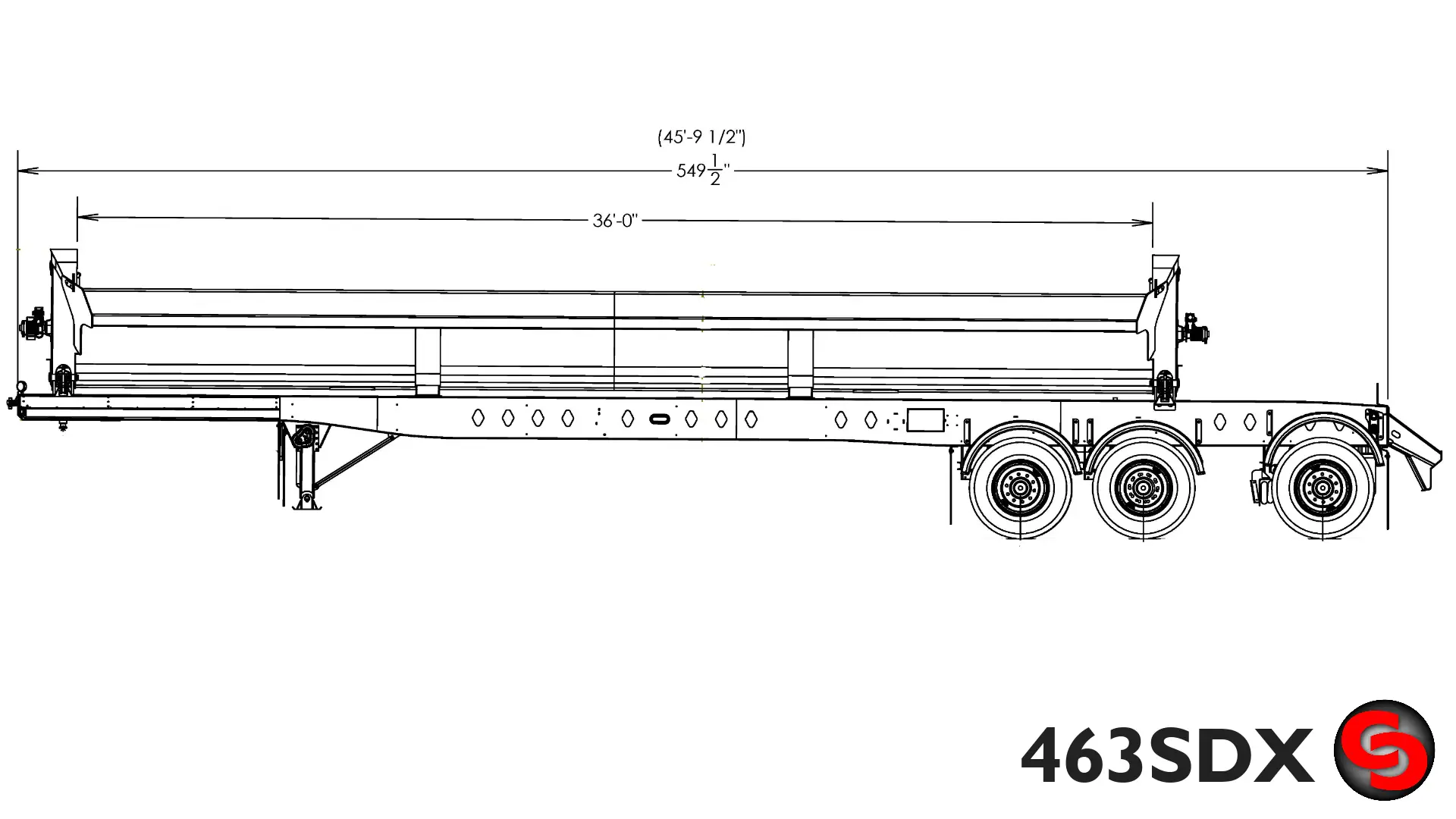

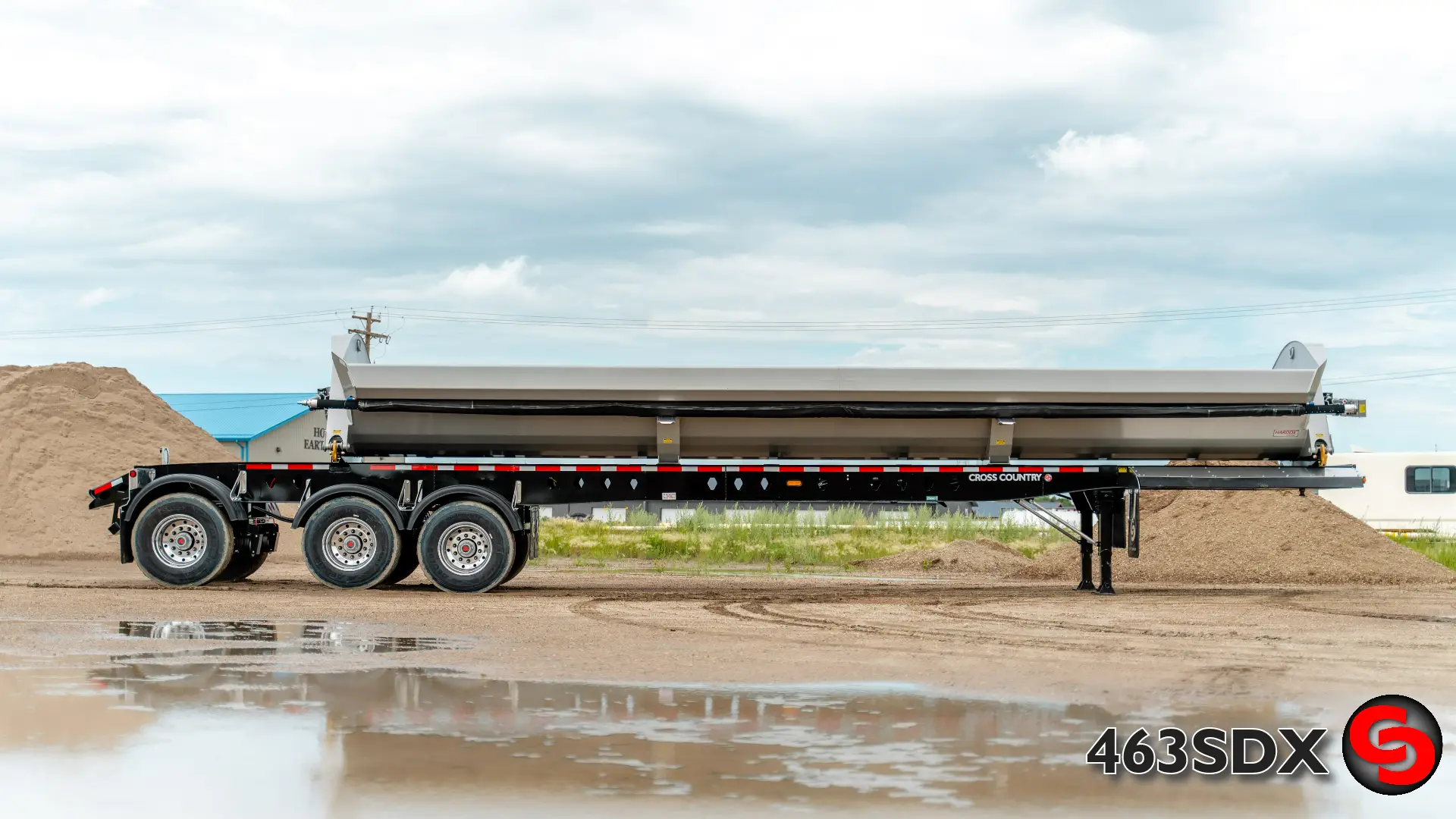

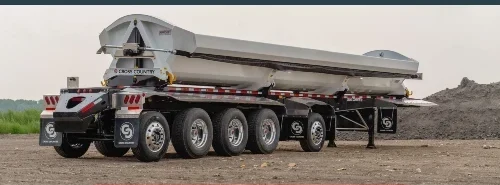

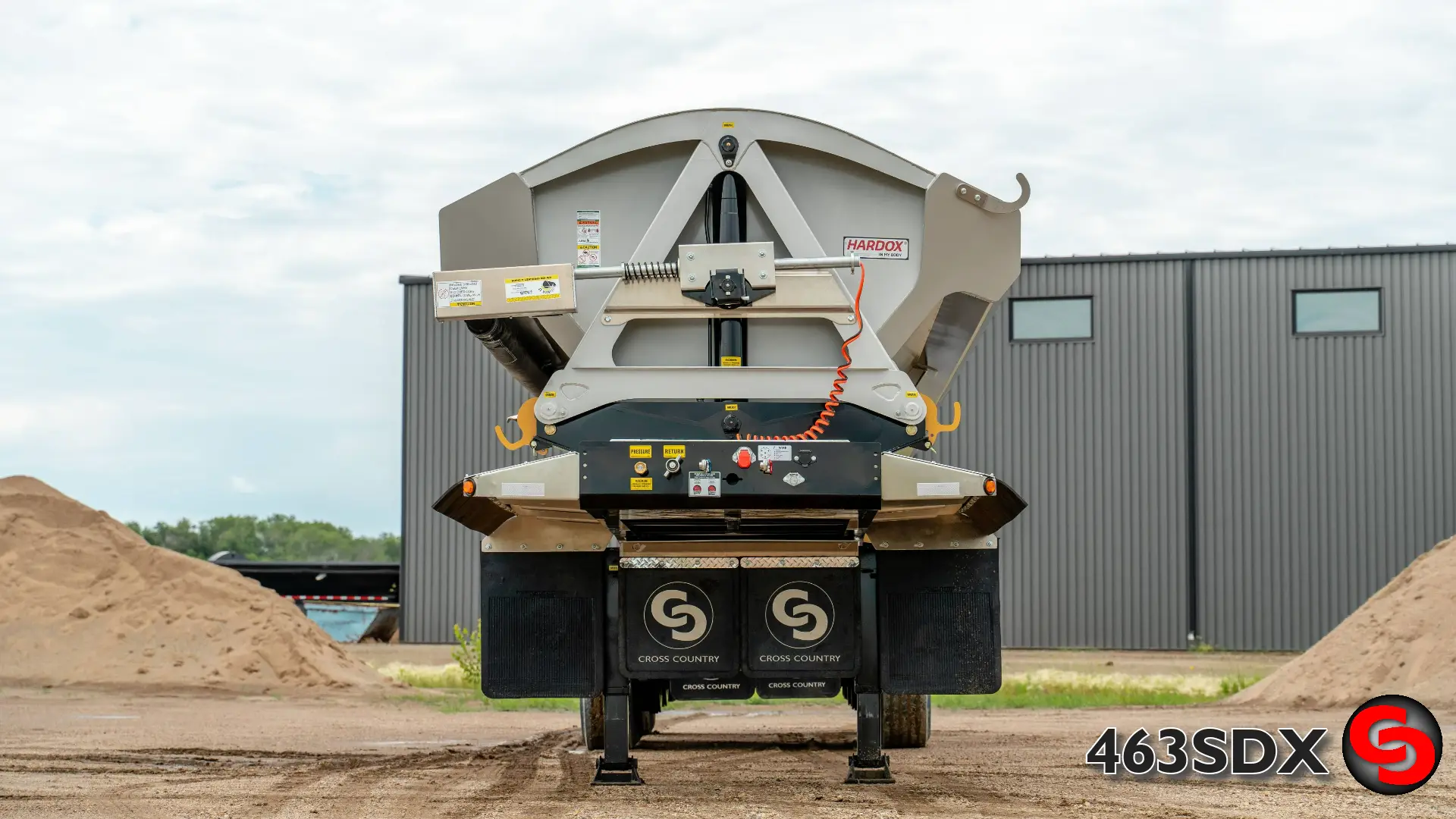

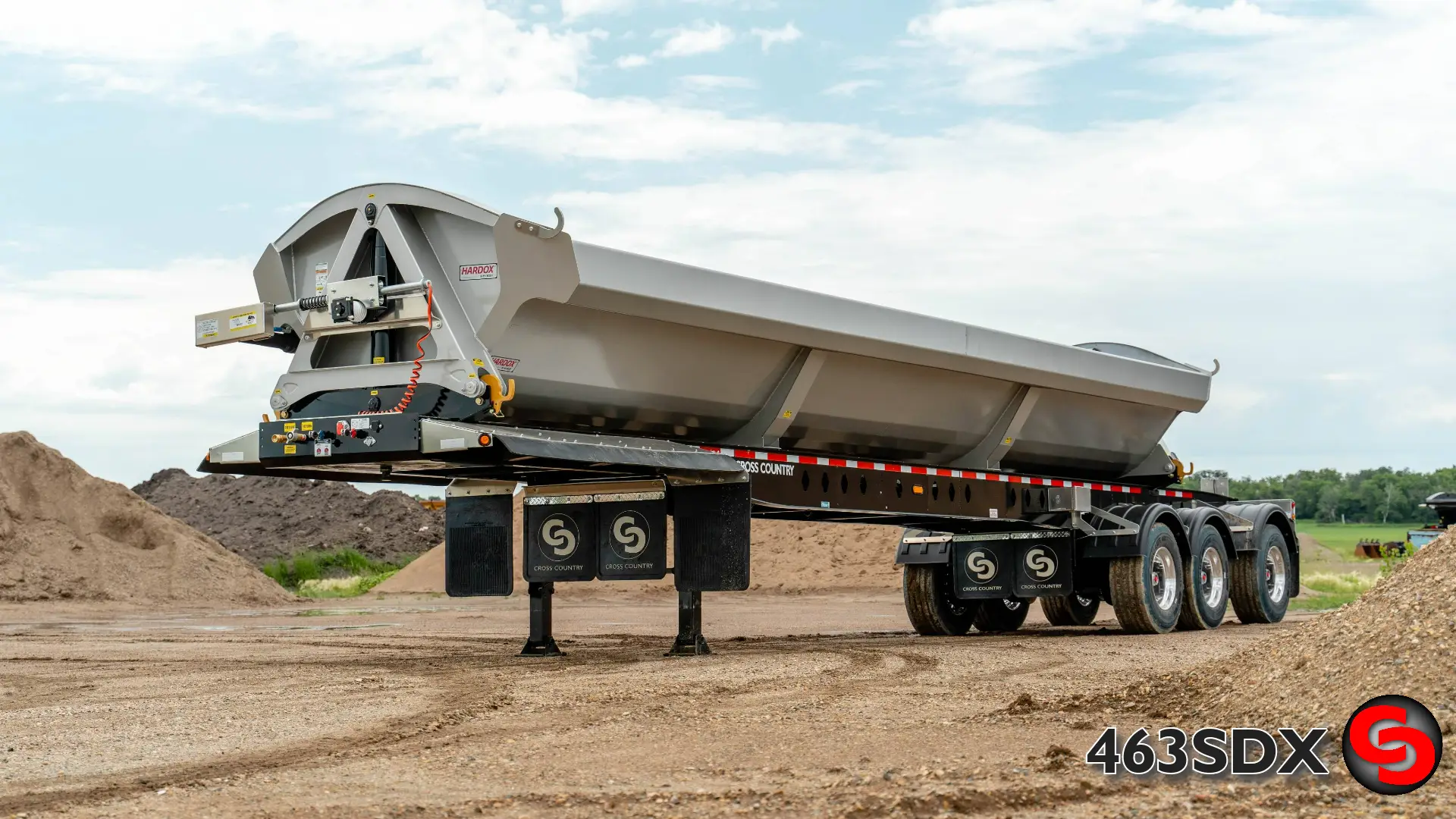

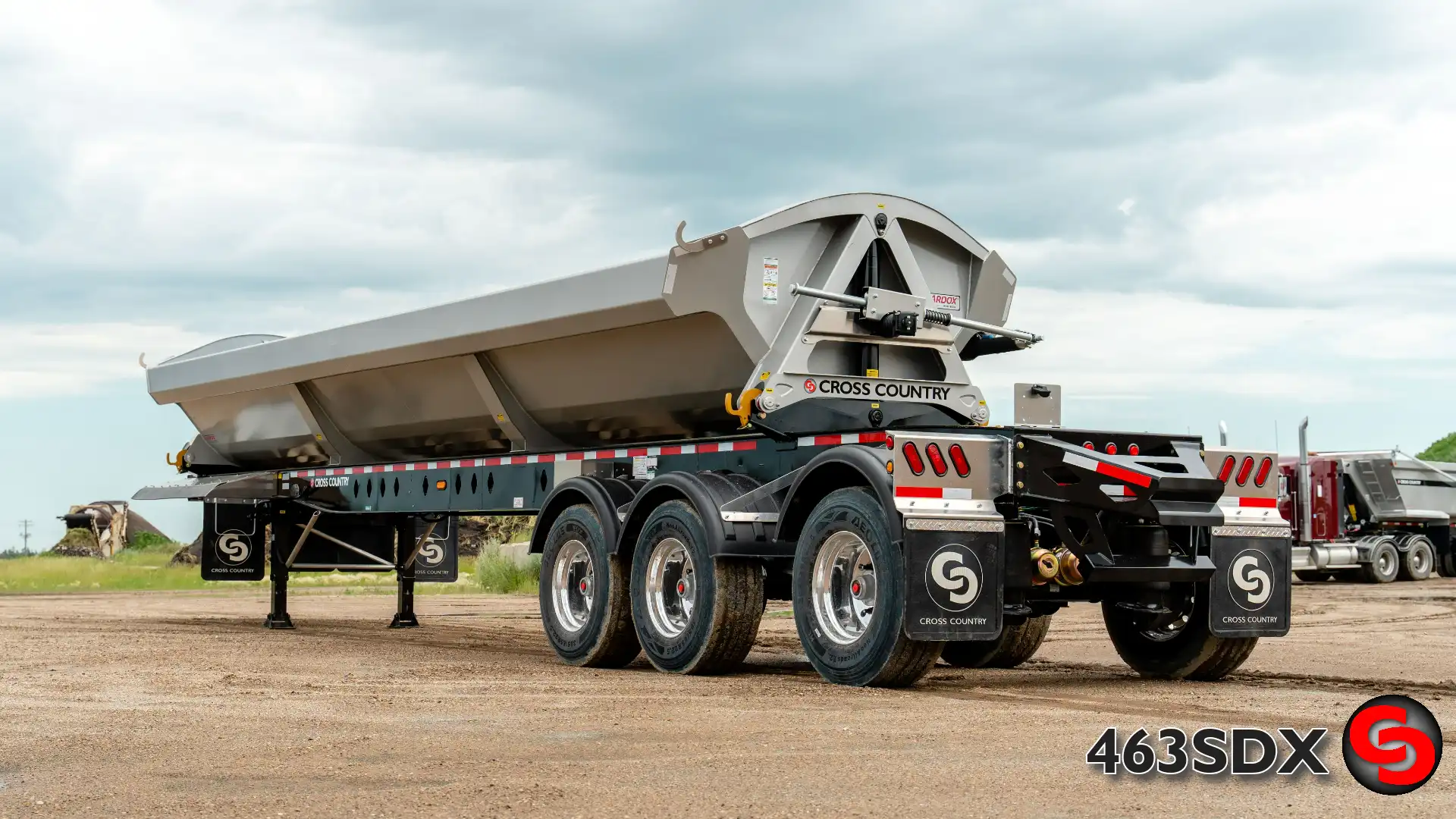

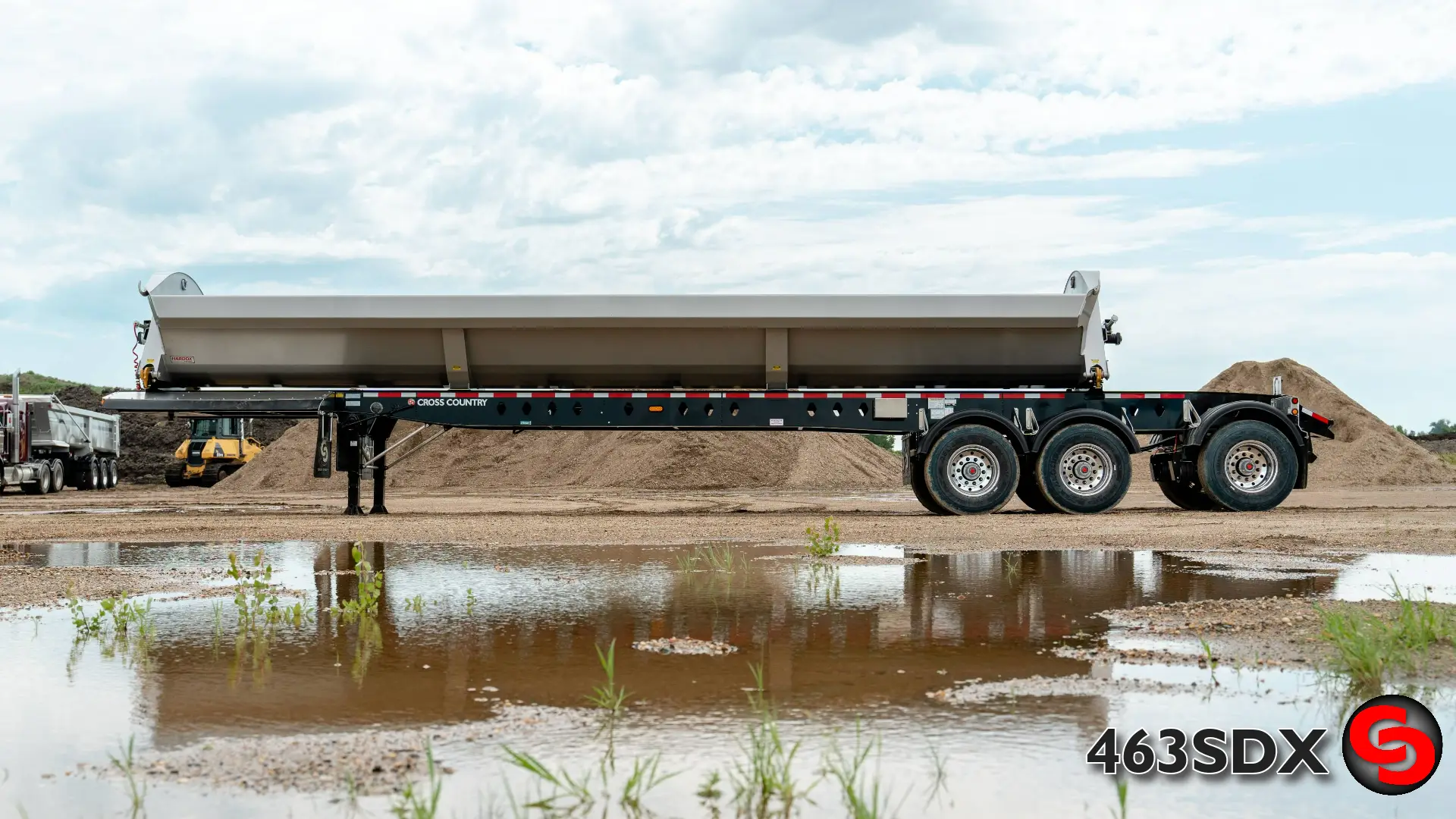

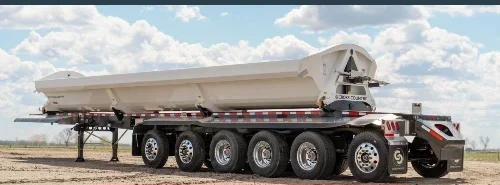

46' Tridem Side Dump — Photos & Detail Views
Click any photo to enlarge. Field photography, engineering details, and build configurations of this model.

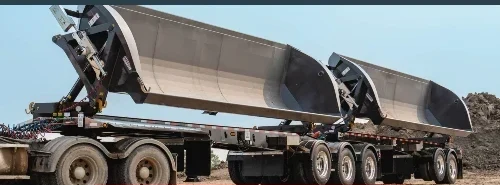

Product Family
